Description

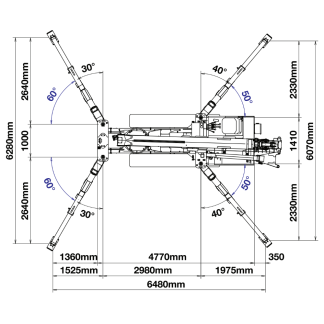

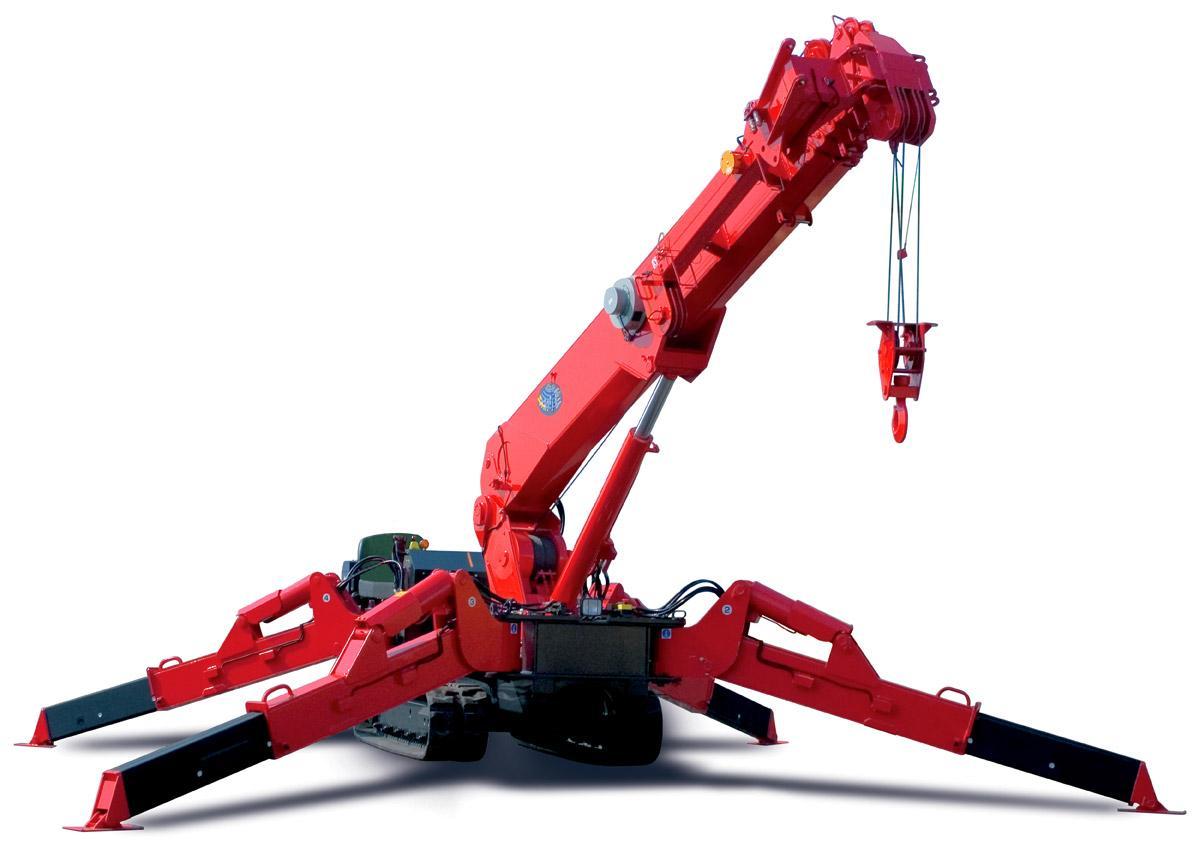

With a 6 tonne capacity at 3.0m and a hook height of 19.5m it is one of the highest capacity UNIC cranes in the range, yet at 1670mm wide it is still narrow enough to gain access through a standard double doorway.

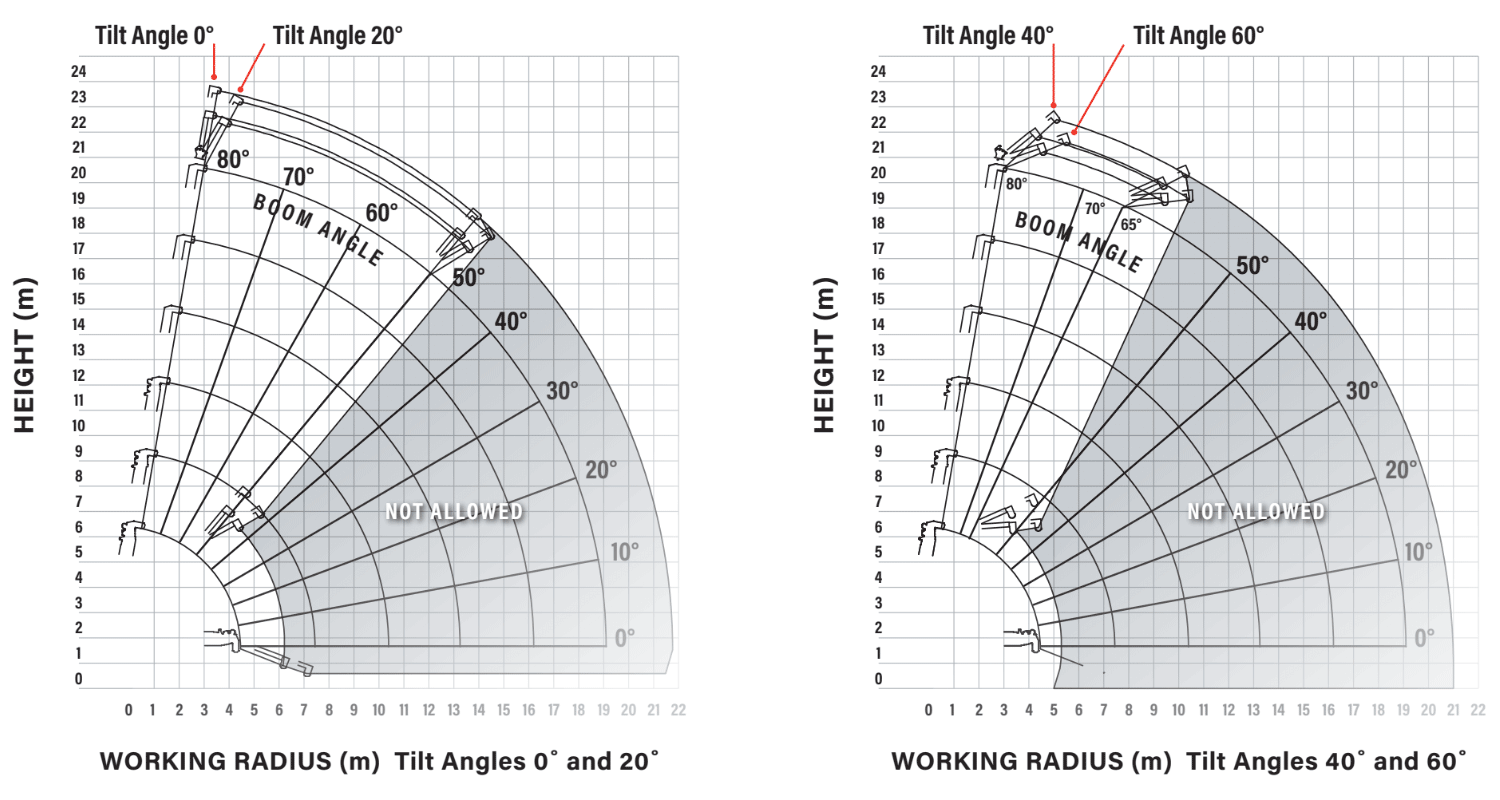

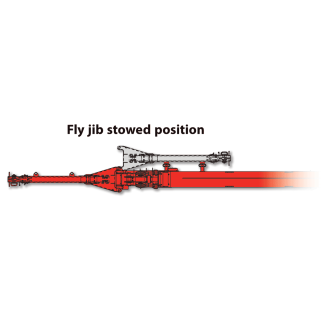

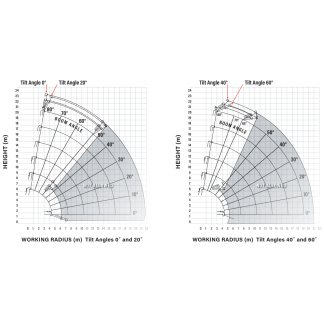

For added lifting flexibility the URW-706 also features an optional searcher hook and a 3.1m long swing away fly jib, providing a maximum hook height of 22.7m. The new 706-2 hydraulic searcher hook provides a maximum hook height of 25.9m
| Capacity | 6.0t x 3.0m |

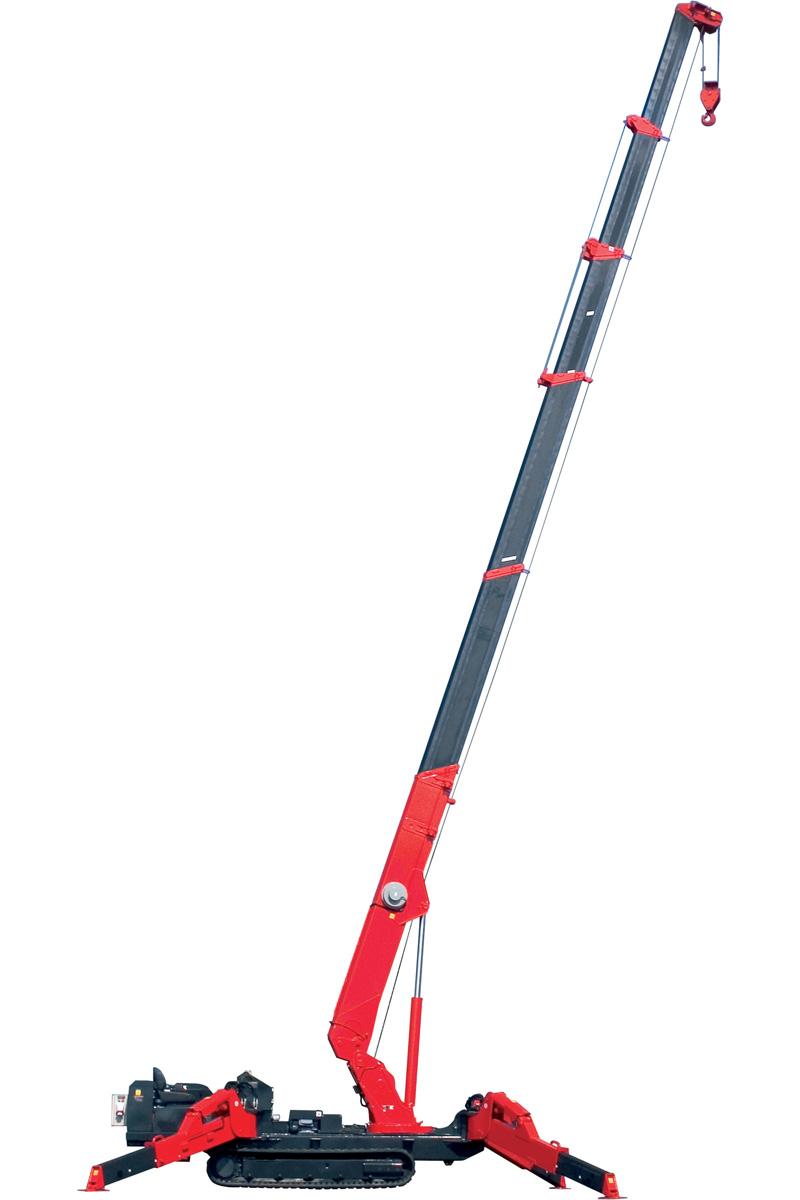

| Max working height | 19.5m (22.7m with second stage manual fly jib) |

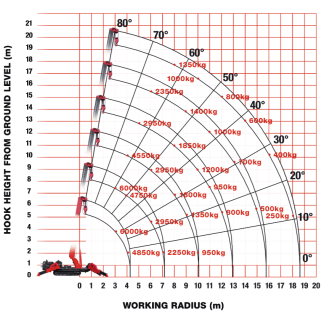

| Max working radius | 18.6m |

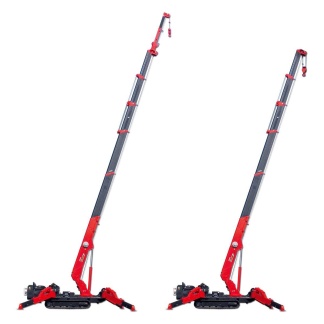

| Boom length | 4.80 – 19.20m |
| Weight | 7920kg + 160kg (8080kg with electric option), +230kg (8310kg with searcher hook and fly jib attached) |
| Gradability | ±20° (vertical) ±20° (traverse) |
| Power source | Diesel, electric dual power option |
