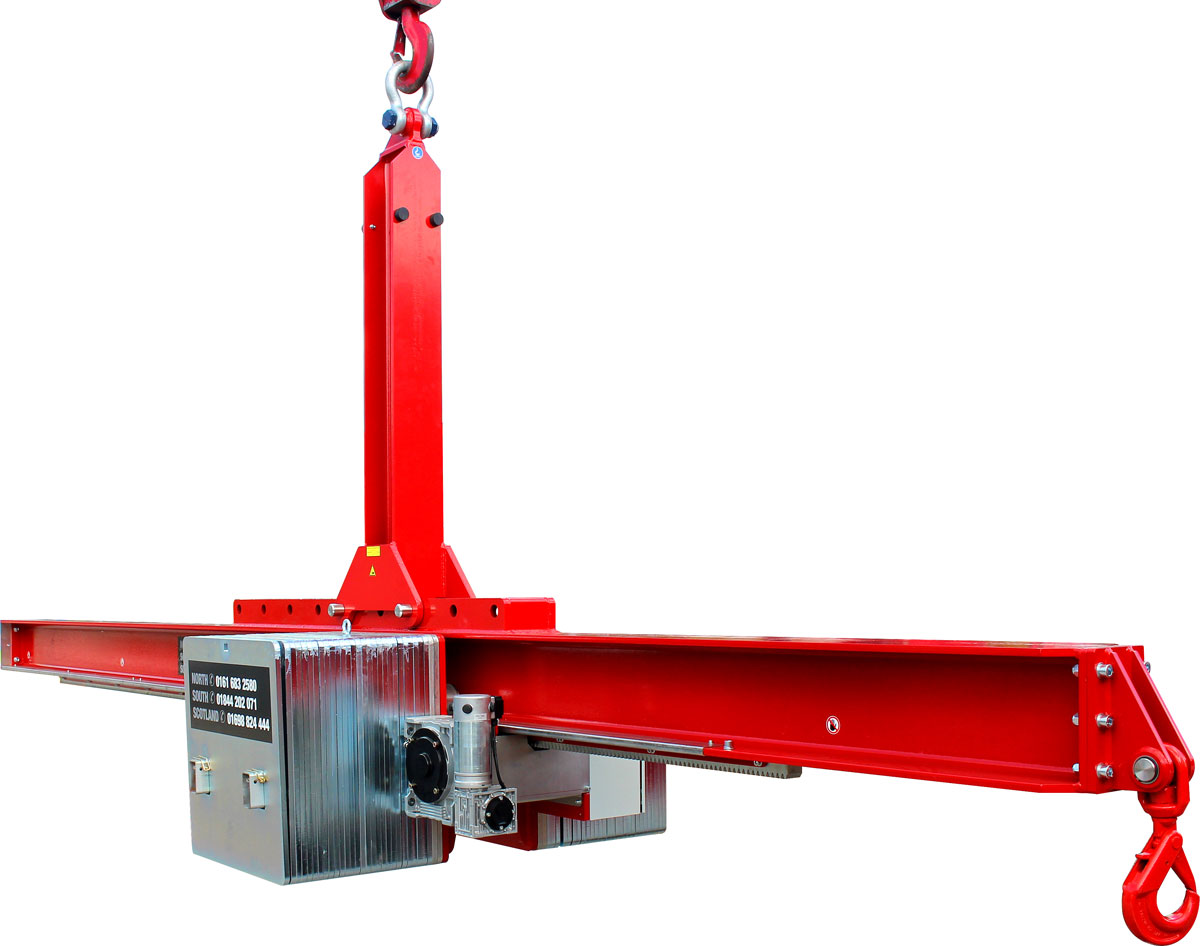

Libro 12000 Overhang Beam – Front On Angle

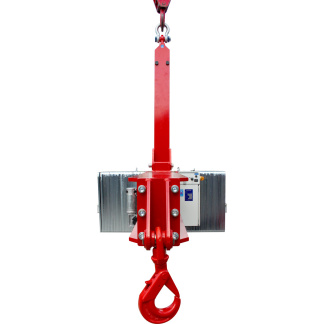

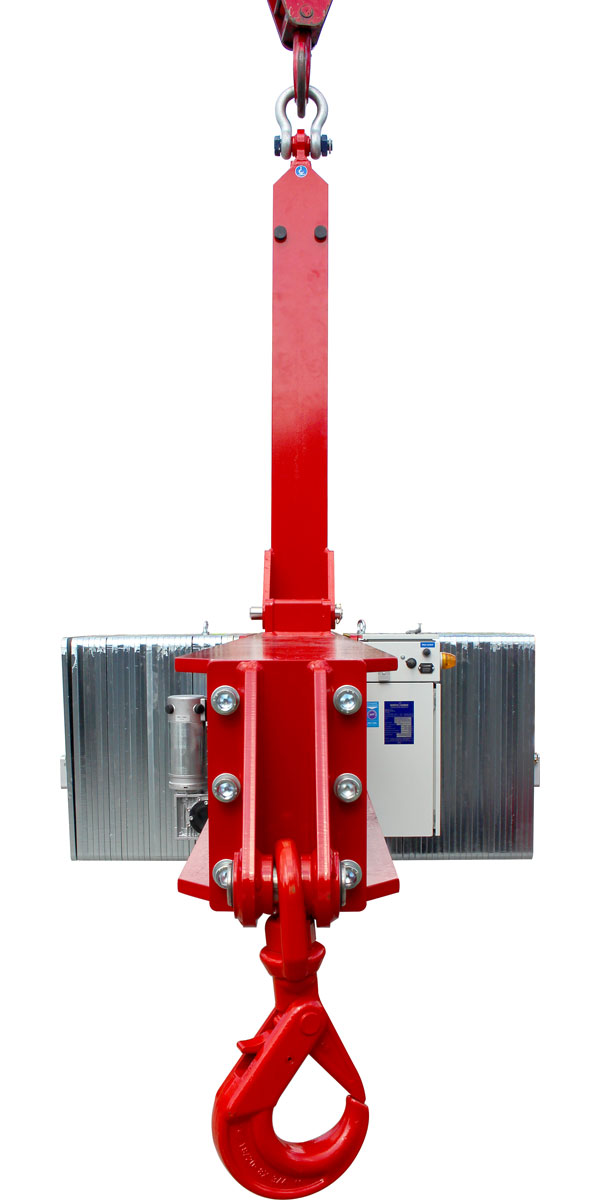

Libro 12000 Overhang Beam – Front On

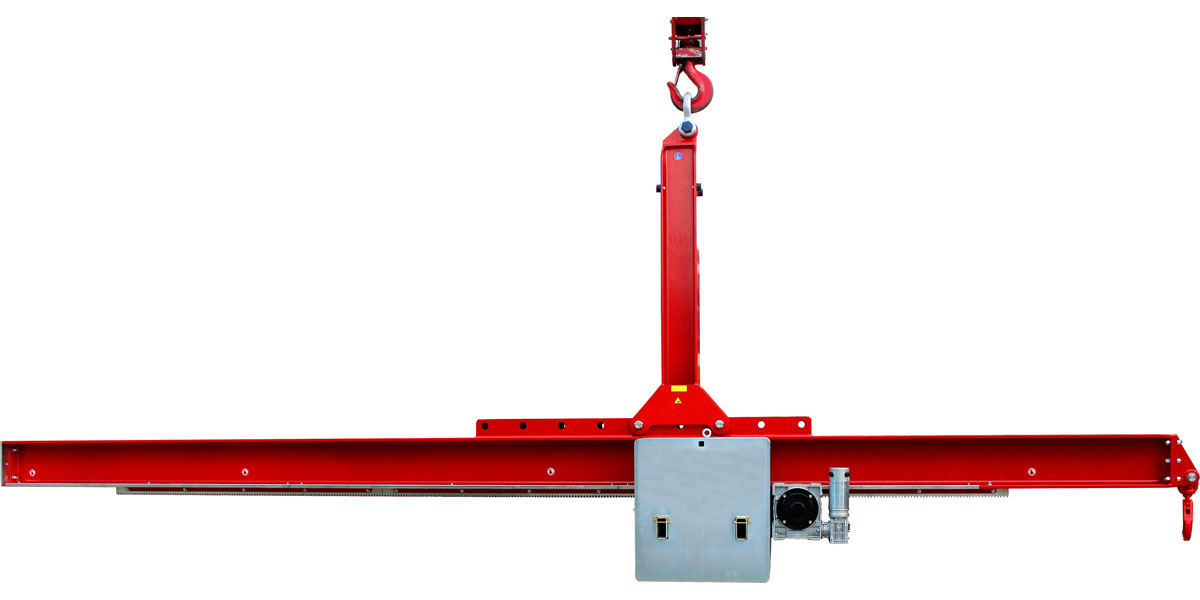

Libro 12000 Overhang Beam – Side On

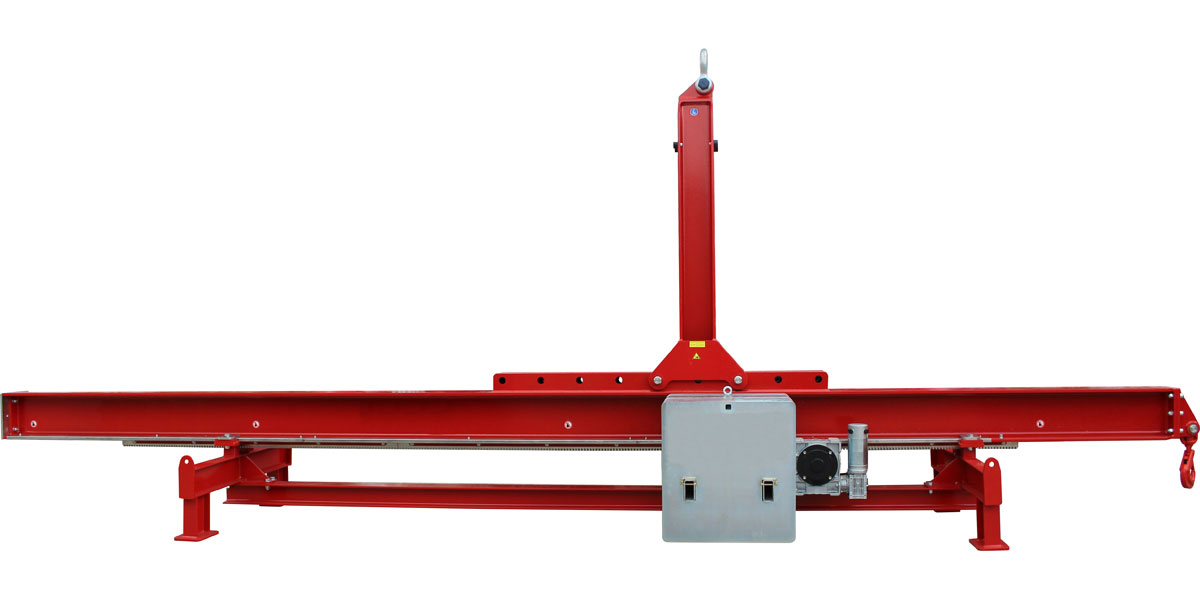

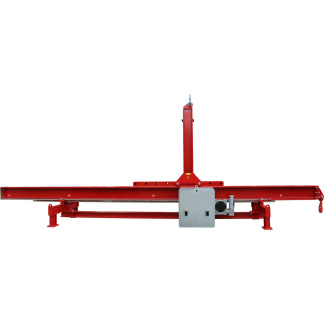

Libro 12000 Overhang Beam – Side-on On Stand
Libro 12000 Overhang Beam – Dimensions
Full Screen
For Hire X For Sale Buy Online X

Libro Lifting Equipment

The 12000kg capacity Libro 12000 is designed to be attached to mobile cranes and tower cranes at height. This counterweight balancer is capable of installing glass, cladding, curtain walling and balconies below overhangs of up to 4000mm deep.

Price on Application

Hire With or Without Operator

Description

The Libro 12000 is fitted with a rechargeable battery to power the adjustable counterweight rack and pinion saddle. Controlled by cable remote, the counterweight saddle can be moved along the beam to balance the load being lifted.

With a safety feature preventing the main beam going beyond a +/- 10° incline, the Libro 12000 overhang beam also features an integrated hook and can be used with a below-the-hook vacuum lifter, which are also offered for hire or sale from the GGR Group (please note: use of below-the-hook lifters depends on type of project).

Capacity: 12000kg
Depth of Overhang: 3m

Key Features

  • Capacity: 12000kg
  • Suitable for overhangs up to 4m deep overhangs
  • Hook attachment
  • Cable remote control for counterweight saddle
  • 24V DC battery with separate 110/240v charger
  • Weight: 7500kg approx. (with counterweights), 340 kg approx. (stand)
  • Glass and lifter combined must not exceed stated weight – see capacities at each working length

Technical Specs

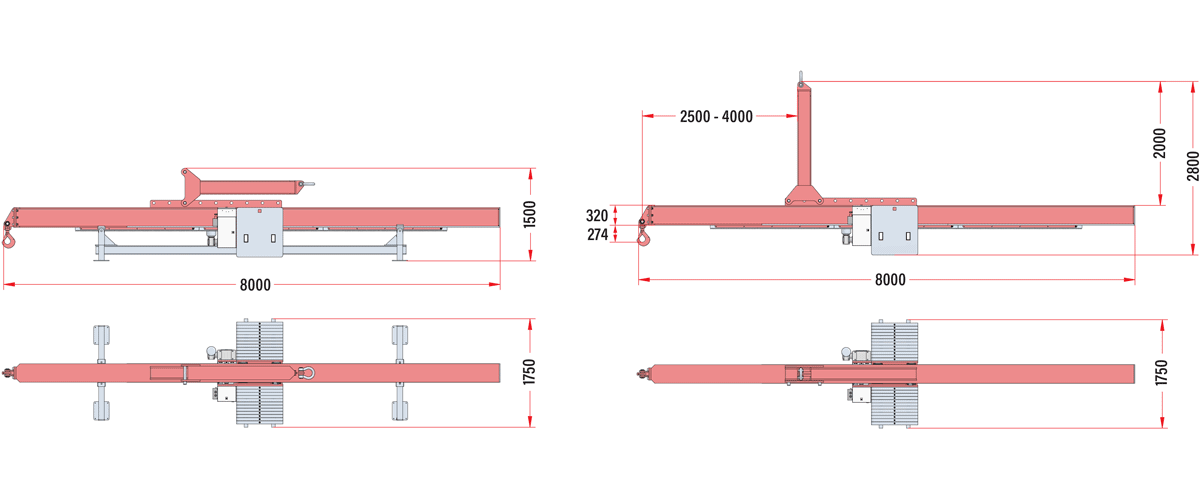

Libro 12000 Overhang Beam Dimensions

<h4>Libro 12000 Overhang Beam Dimensions</h4>
