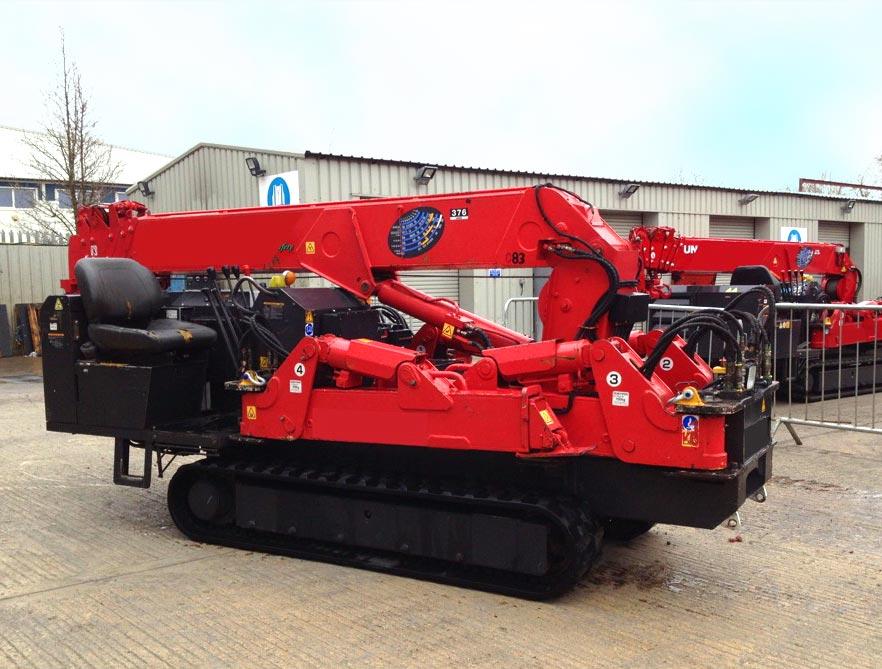

Spider Crane Hire – UNIC URW 376 is ideal for a wide range of lifting applications zoom

Hover

Spider Crane Hire – UNIC URW 376 is ideal for a wide range of lifting applications zoom

Hover

PHOTO-2018-12-05-12-36-36_1 zoom

Hover

PHOTO-2018-12-05-12-36-36 zoom

Hover

PHOTO-2018-12-05-12-36-35_4 zoom

Hover

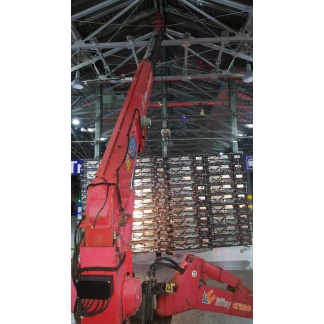

PHOTO-2018-12-05-12-36-35_2 zoom

Hover

PHOTO-2018-12-05-12-36-35_1 zoom

Hover

PHOTO-2018-12-05-12-36-35 zoom

Hover

PHOTO-2018-12-05-12-36-34_1 zoom

Hover

PHOTO-2018-12-05-12-36-34 zoom

Hover

PHOTO-2018-11-29-07-59-41_1 zoom

Hover

PHOTO-2018-11-29-07-59-41 zoom

Hover

PHOTO-2018-11-29-07-59-40_2 zoom

Hover

PHOTO-2018-11-29-07-59-40_1 zoom

Hover

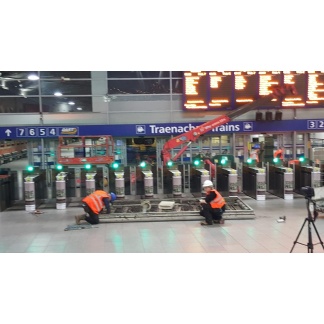

PHOTO-2018-11-29-07-59-40 zoom

Hover

URW-376 Mini Spider Crane zoom

Hover

URW-376 Mini Spider Crane zoom

Hover

URW-376 Mini Spider Crane zoom

Hover

URW-376 Mini Spider Crane zoom

Hover

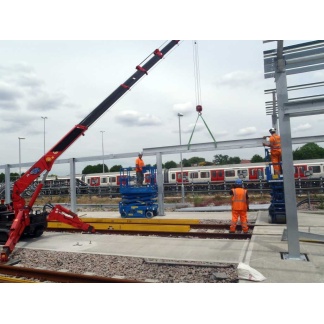

URW-376 Mini Spider Crane – Railway Beams zoom

Hover

URW-376 Mini Spider Crane – Railway Beams zoom

Hover

Spider Crane Hire – UNIC URW-376 zoom

Hover

UNIC URW376 Spider Crane Spec Sheet zoom

Hover

URW-376 Mini Spider Crane – Working Radius zoom

Hover

URW-376 Mini Spider Crane – Elevation Flat zoom

Hover

URW-376 Mini Spider Crane – URW376CDE Boom zoom

Hover

URW-376 Mini Spider Crane – Outrigger Positions zoom

Hover

URW-376 Mini Spider Crane – URW376CDE Working Posture of Searcher Hook zoom

Hover

URW-376 Mini Spider Crane – URW376CD Working Posture of Extension Jib zoom

Hover

URW-376 Mini Spider Crane – URW376CDE Hook Fall zoom

Hover

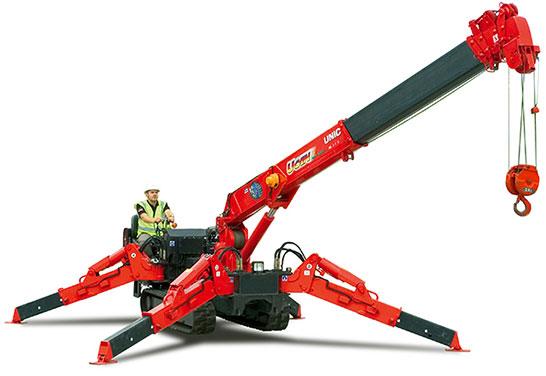

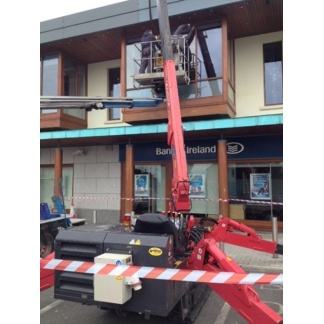

UNIC URW 376 mini Spider Crane

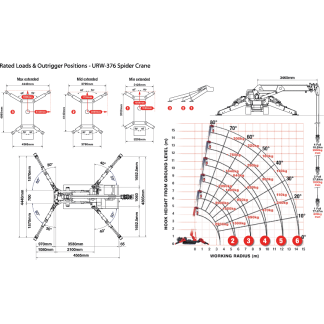

UNIC URW-376 Mini Spider Crane Rated Loads & Outrigger Positions
UNIC URW-376 Mini Spider Crane

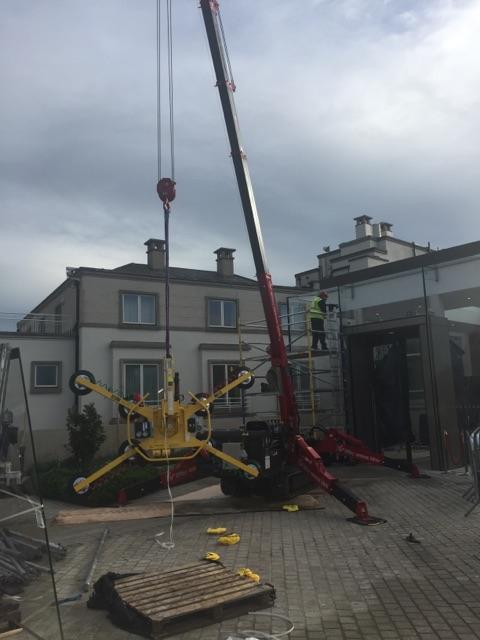

UNIC URW-376 Mini Spider Crane with the MRTA8 Quadra-Tilt Vacuum Lifter
UNIC URW-376 Mini Spider Crane

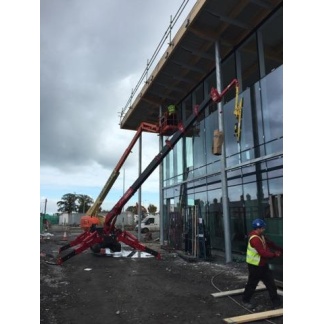

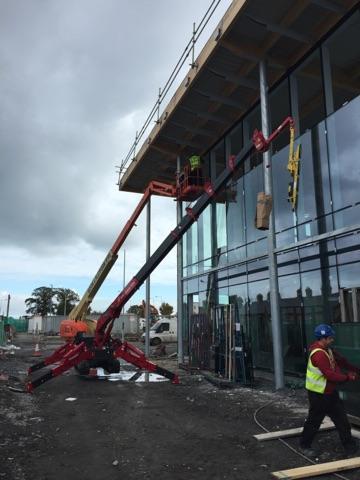

UNIC URW-376 Mini Spider Crane in action
UNIC URW-376 Mini Spider Crane with the P11104 4-in-line Vacuum Lifter
UNIC URW-376 Mini Spider Crane
UNIC URW-376 Mini Spider Crane

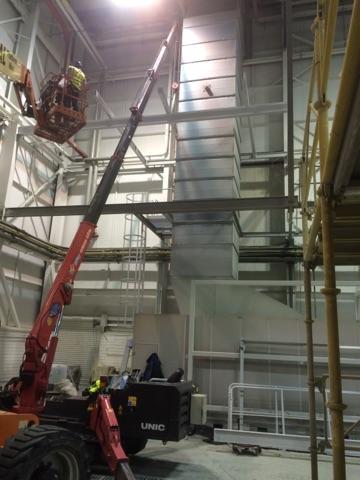

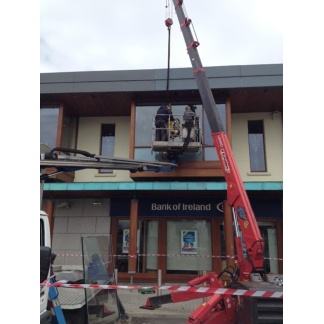

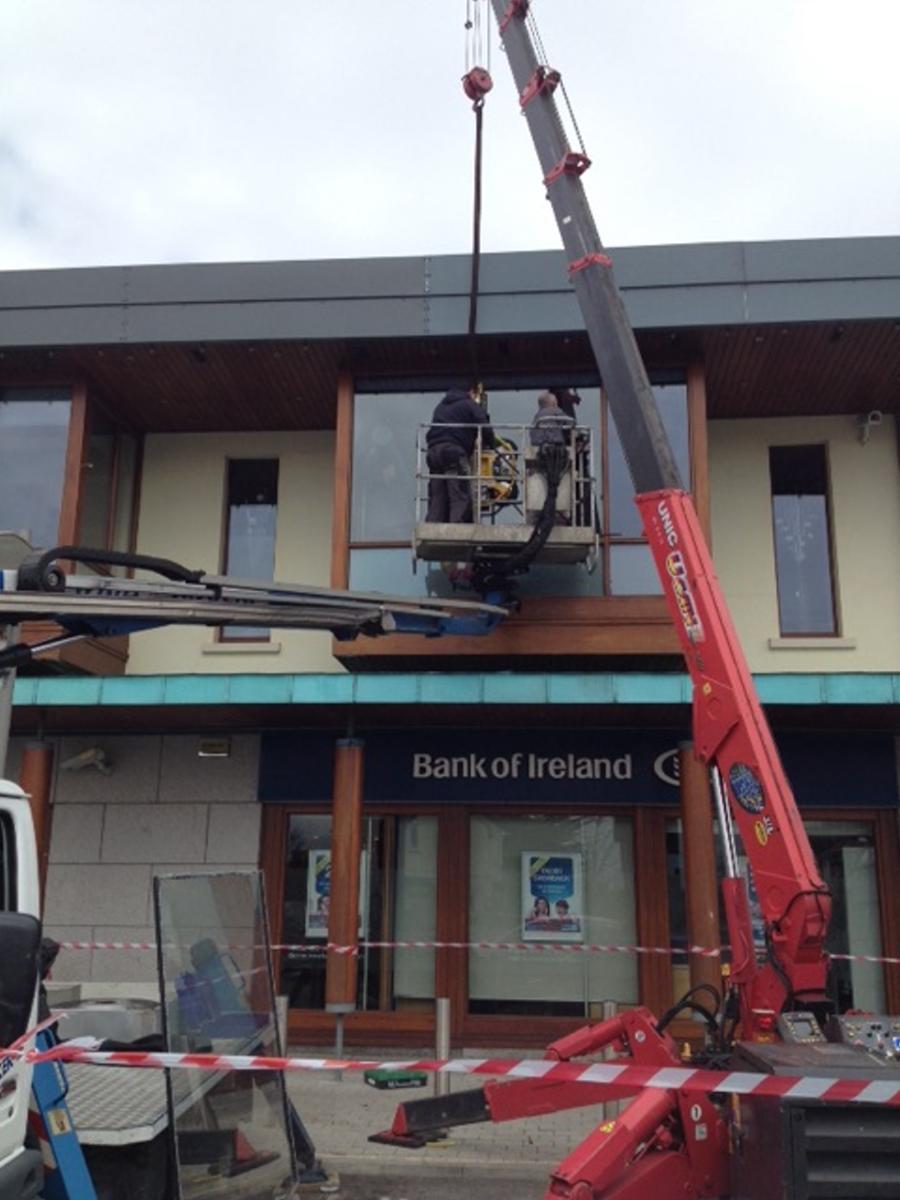

UNIC URW-376 Mini Spider Crane has a max lifting height of approx 14.9m
UNIC URW-376 Mini Spider Crane

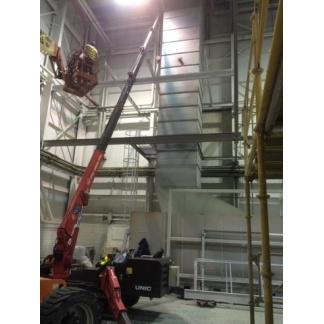

UNIC URW-376 Mini Spider Crane has a max lifting height of approx 14.9m
UNIC URW-376 Mini Spider Crane

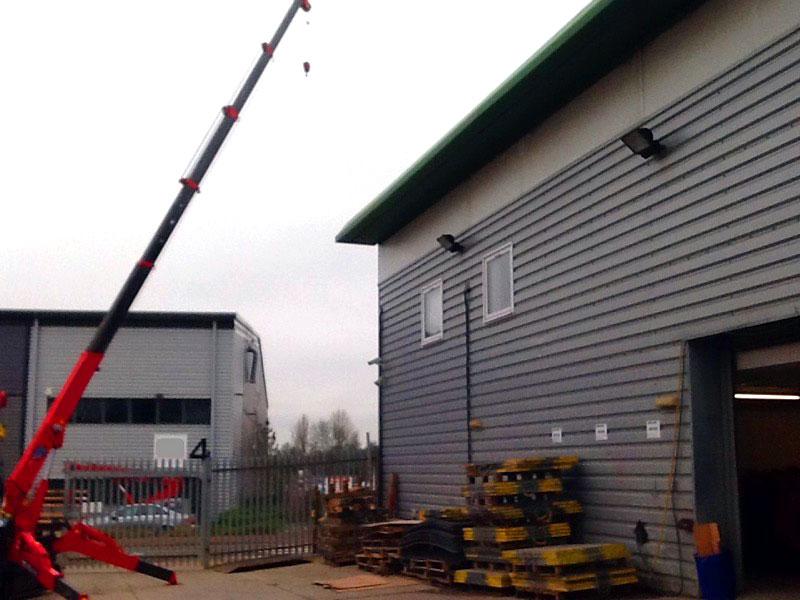

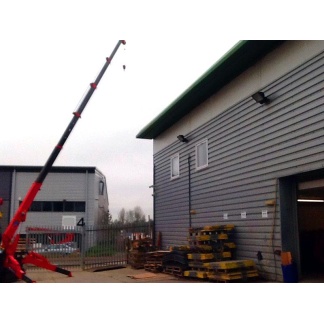

Mini Spider Crane Hire – UNIC URW 376 in action

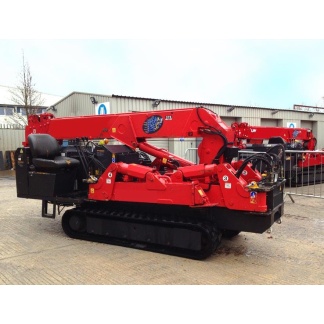

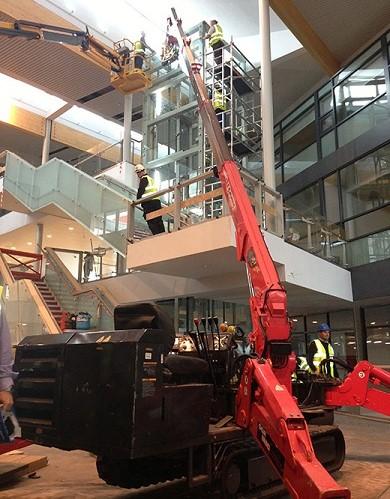

Spider Crane Hire – UNIC URW 376 is ideal for a wide range of lifting applications
Spider Crane Hire – UNIC URW 376 is ideal for a wide range of lifting applications

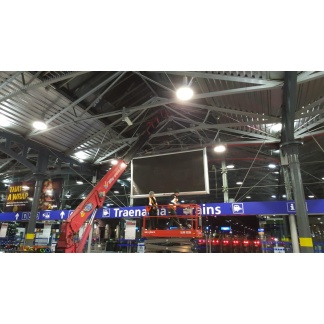

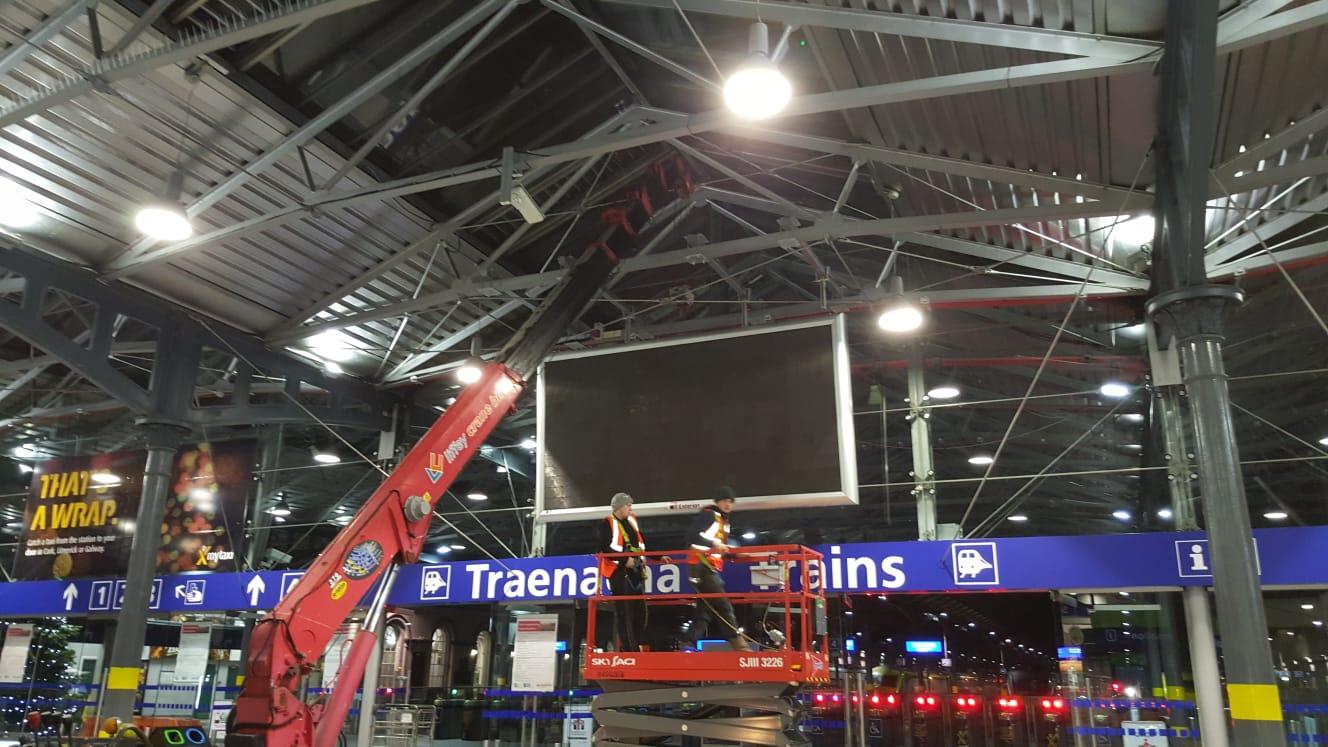

PHOTO-2018-12-05-12-36-36_1

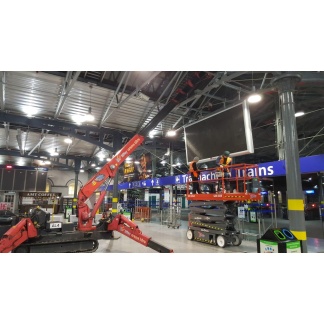

PHOTO-2018-12-05-12-36-36

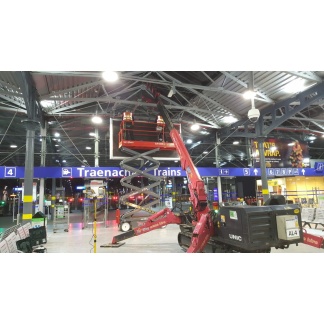

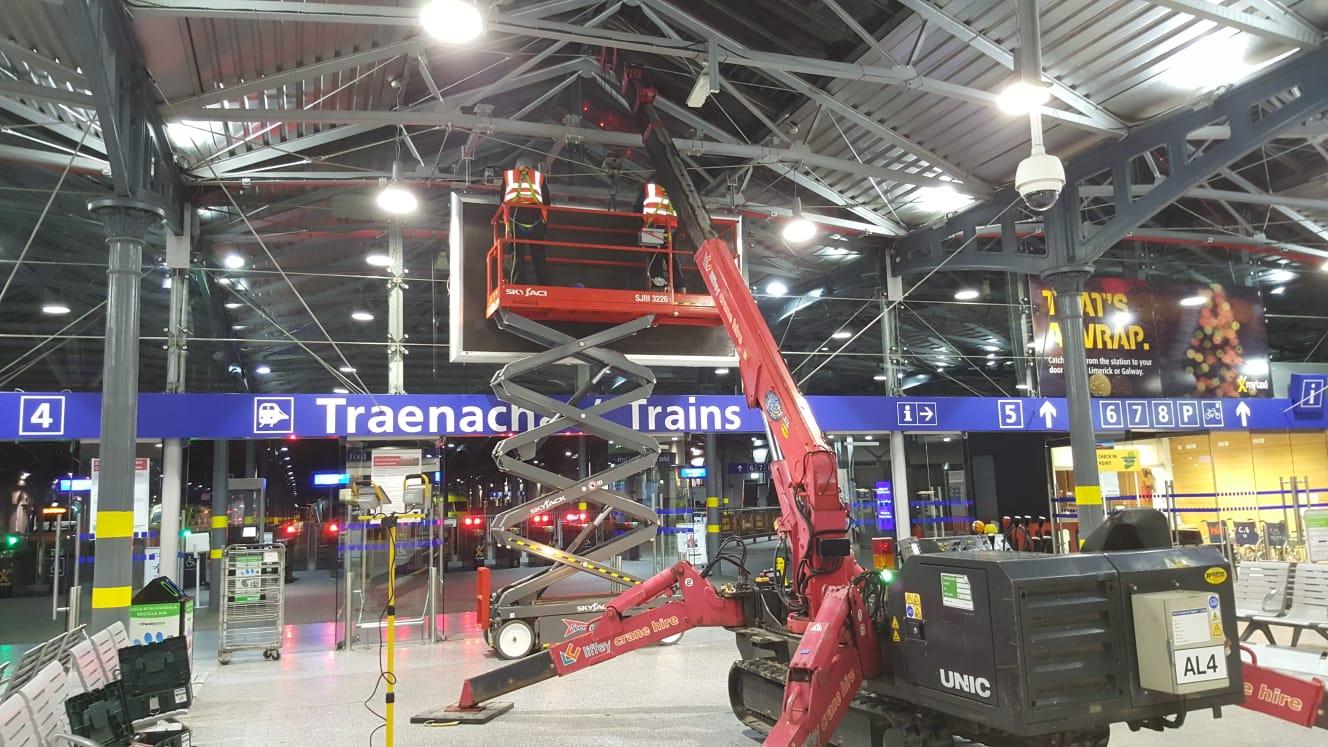

PHOTO-2018-12-05-12-36-35_4

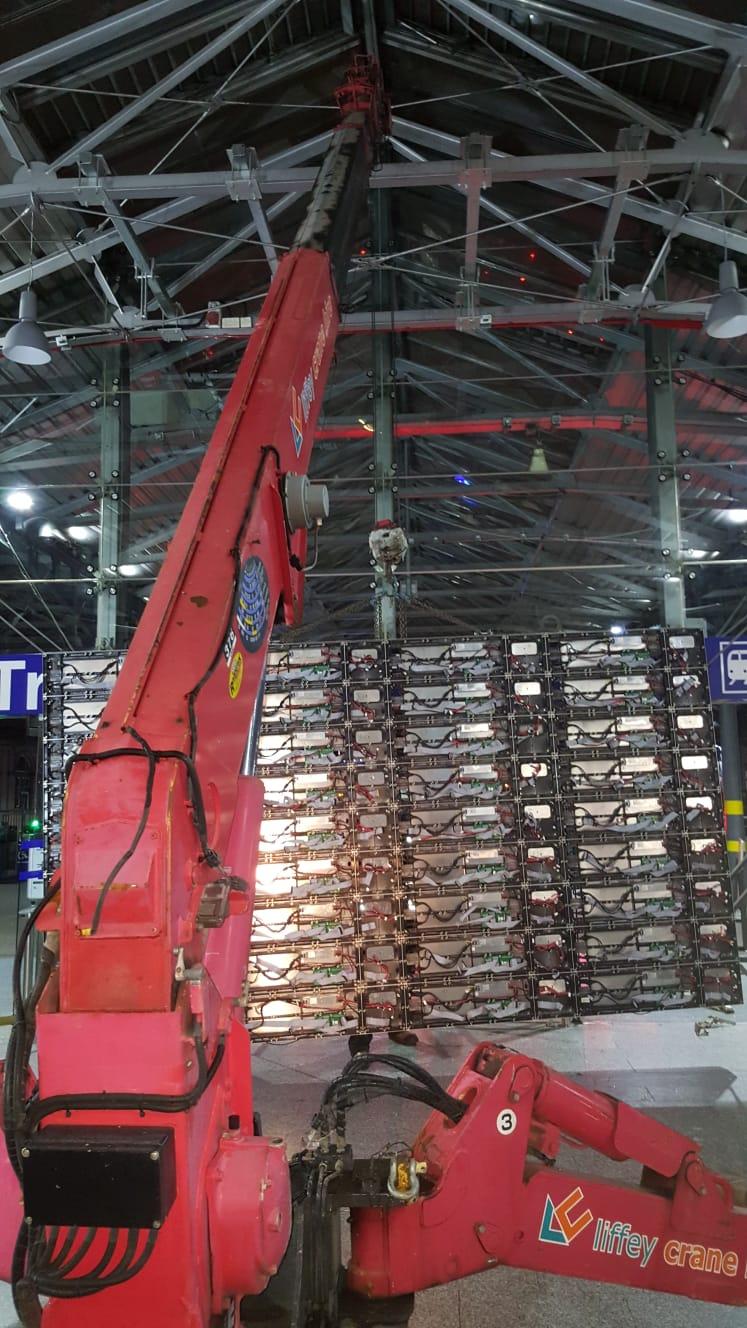

PHOTO-2018-12-05-12-36-35_2

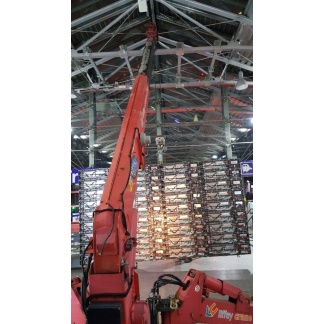

PHOTO-2018-12-05-12-36-35_1
PHOTO-2018-12-05-12-36-35

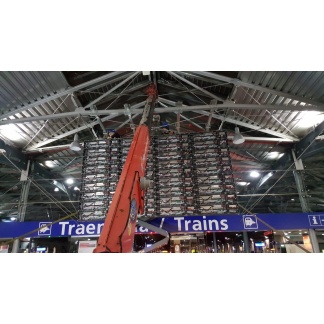

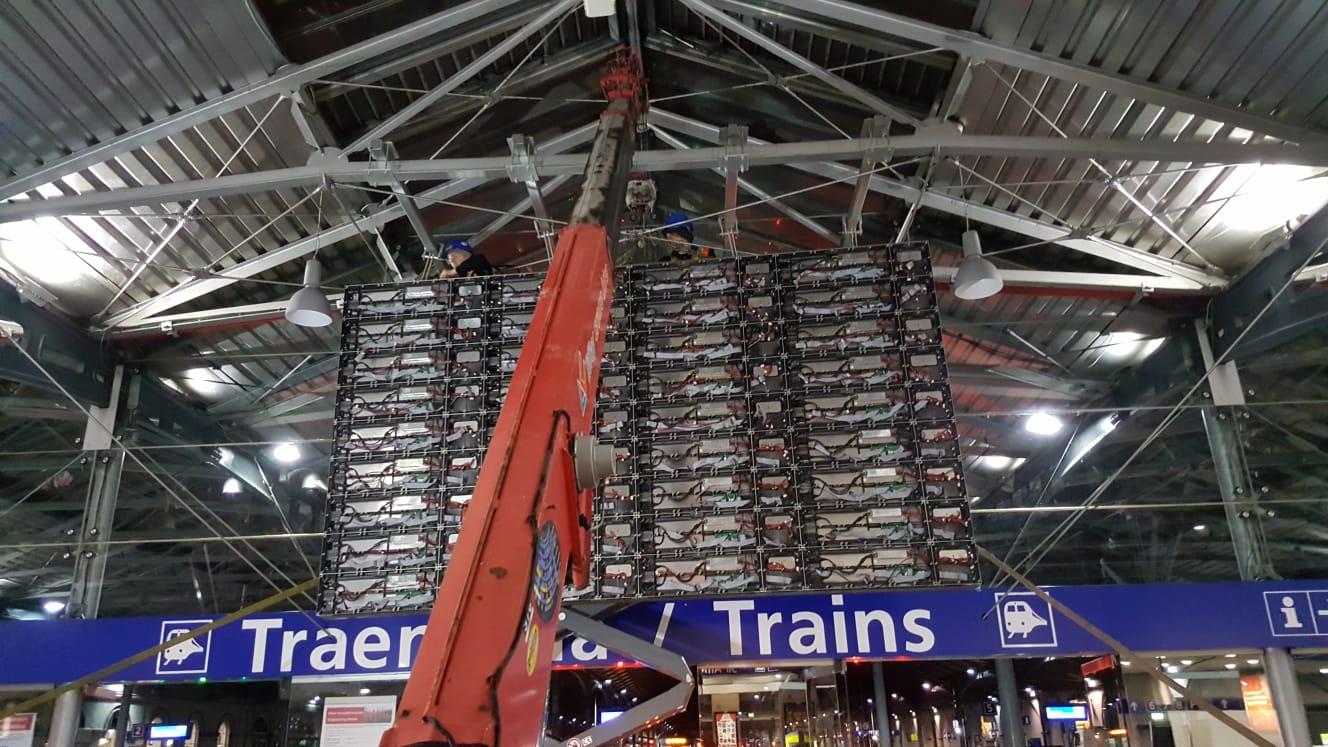

PHOTO-2018-12-05-12-36-34_1

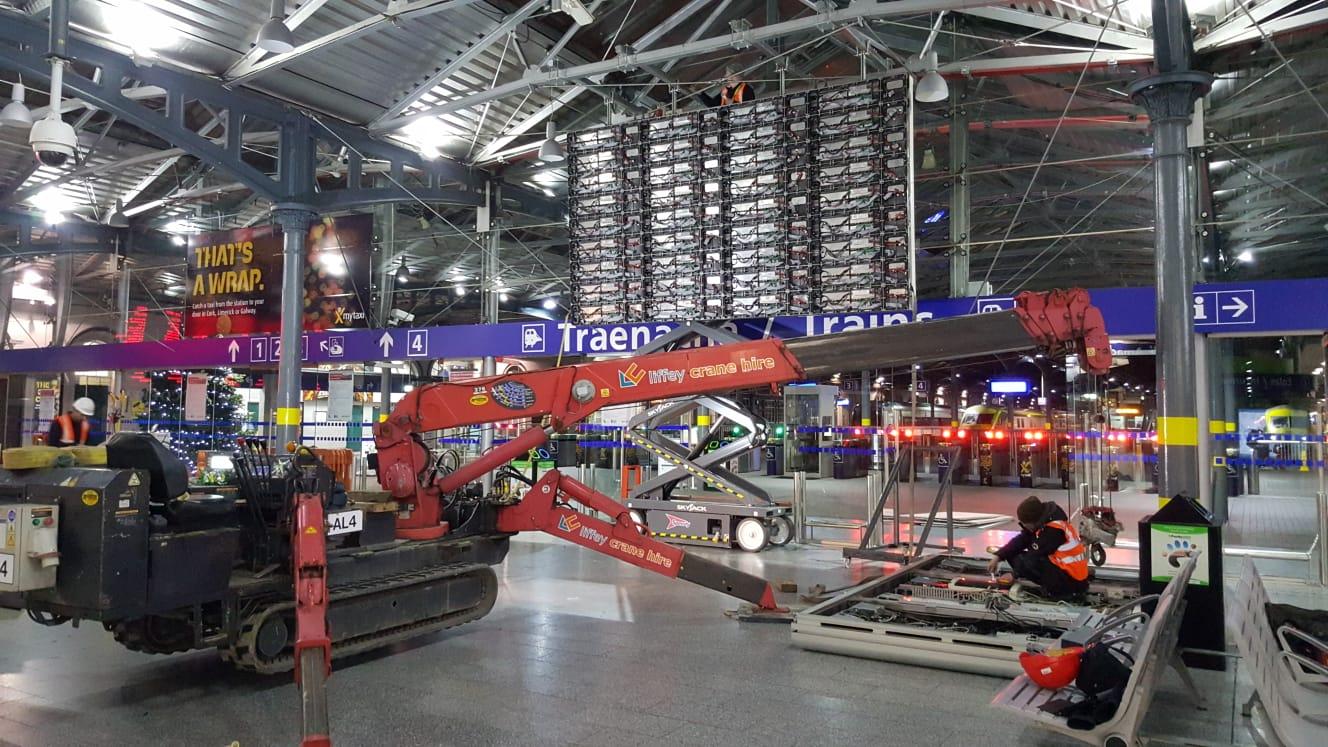

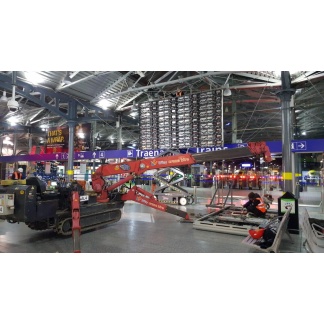

PHOTO-2018-12-05-12-36-34

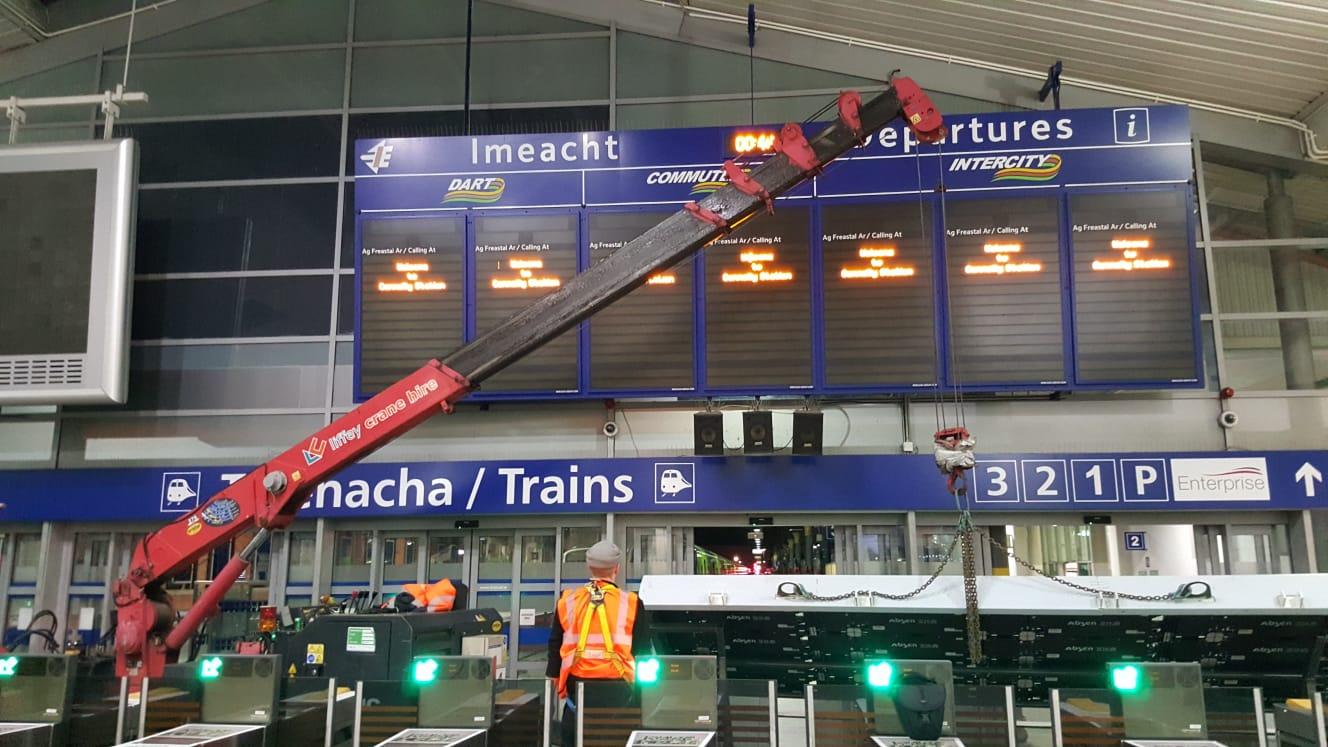

PHOTO-2018-11-29-07-59-41_1

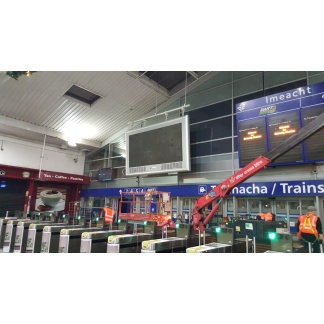

PHOTO-2018-11-29-07-59-41
PHOTO-2018-11-29-07-59-40_2

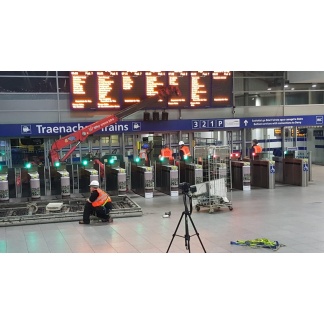

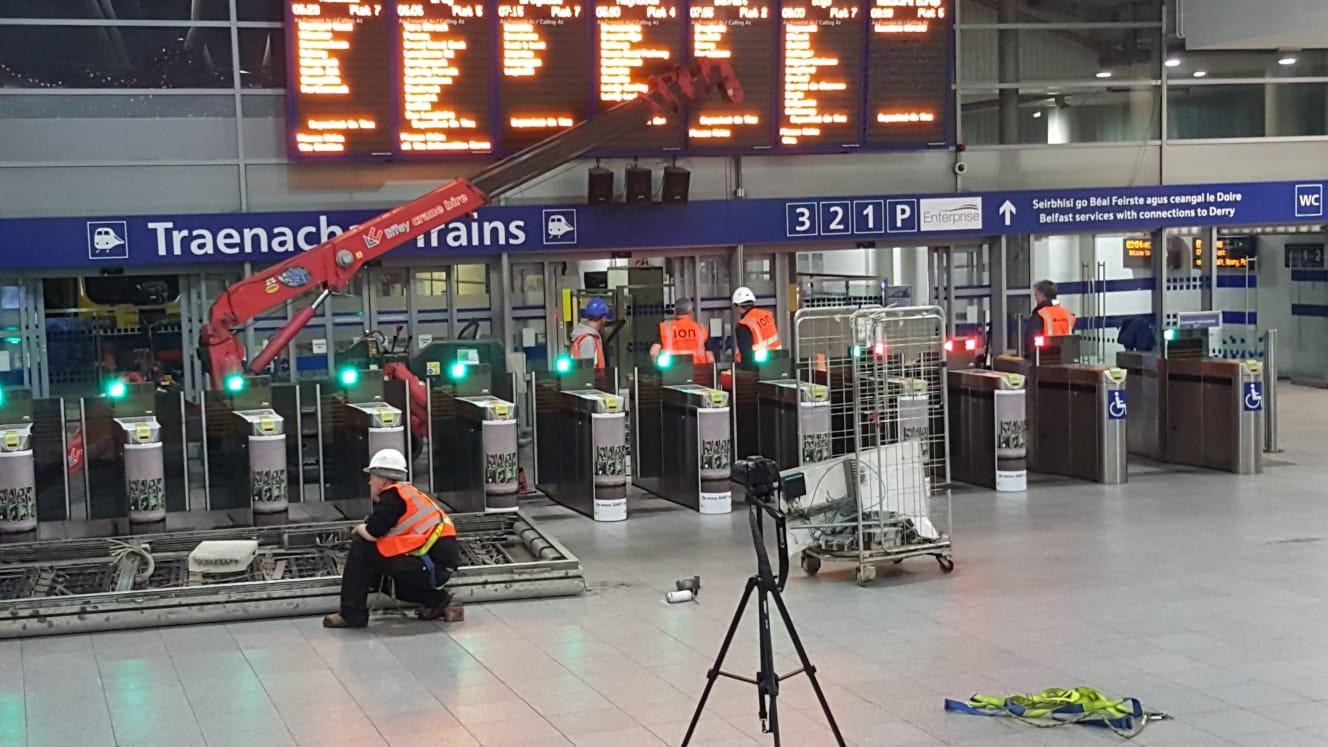

PHOTO-2018-11-29-07-59-40_1
PHOTO-2018-11-29-07-59-40

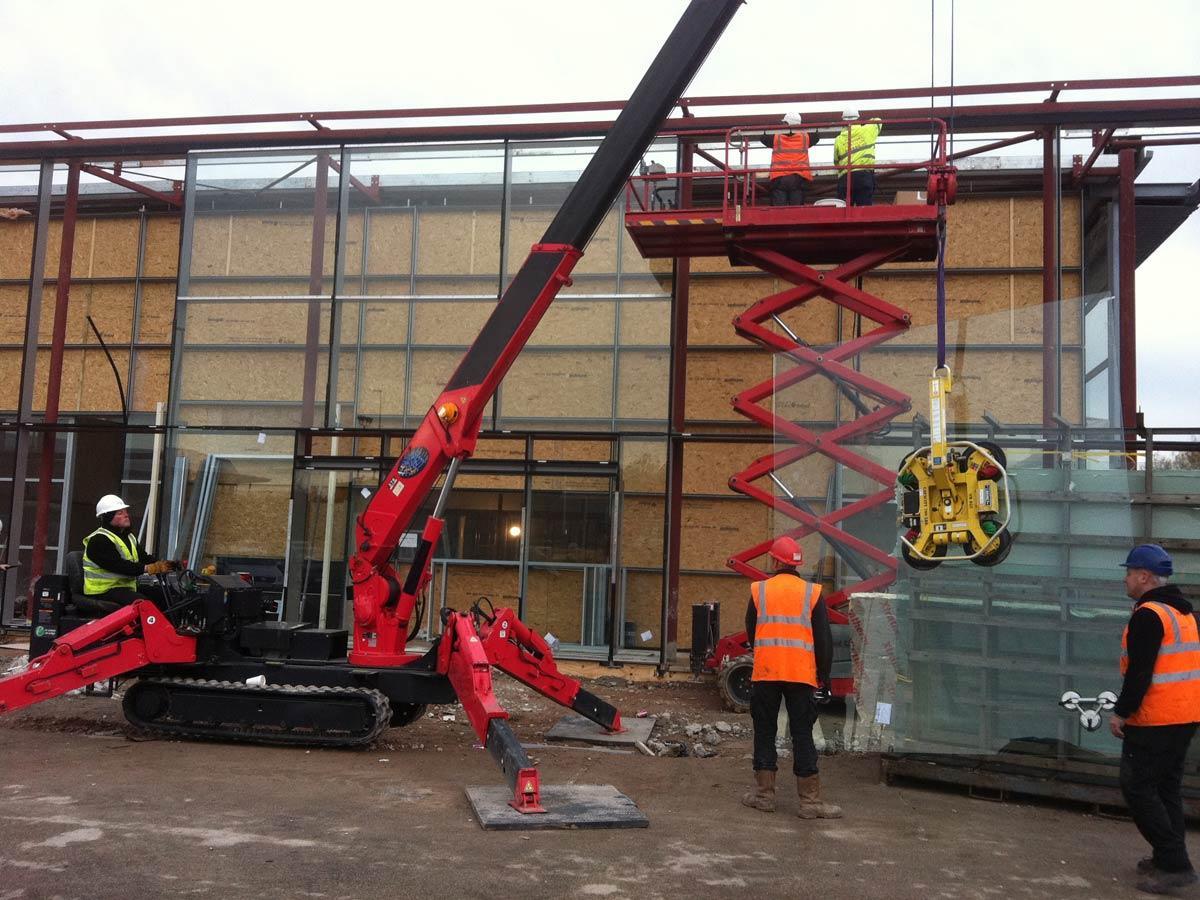

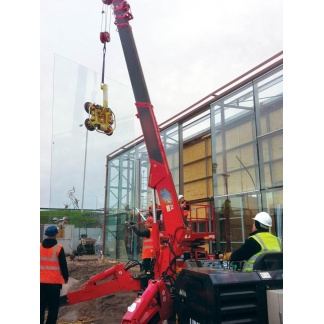

URW-376 Mini Spider Crane
URW-376 Mini Spider Crane
URW-376 Mini Spider Crane
URW-376 Mini Spider Crane

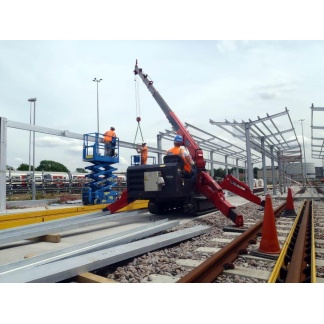

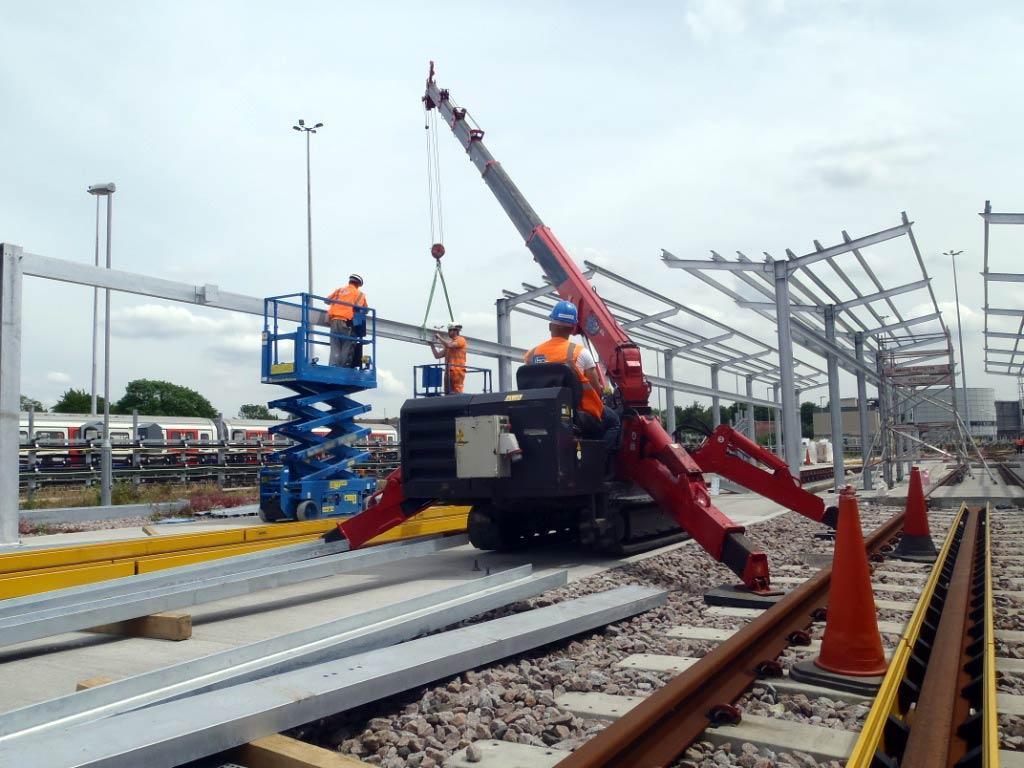

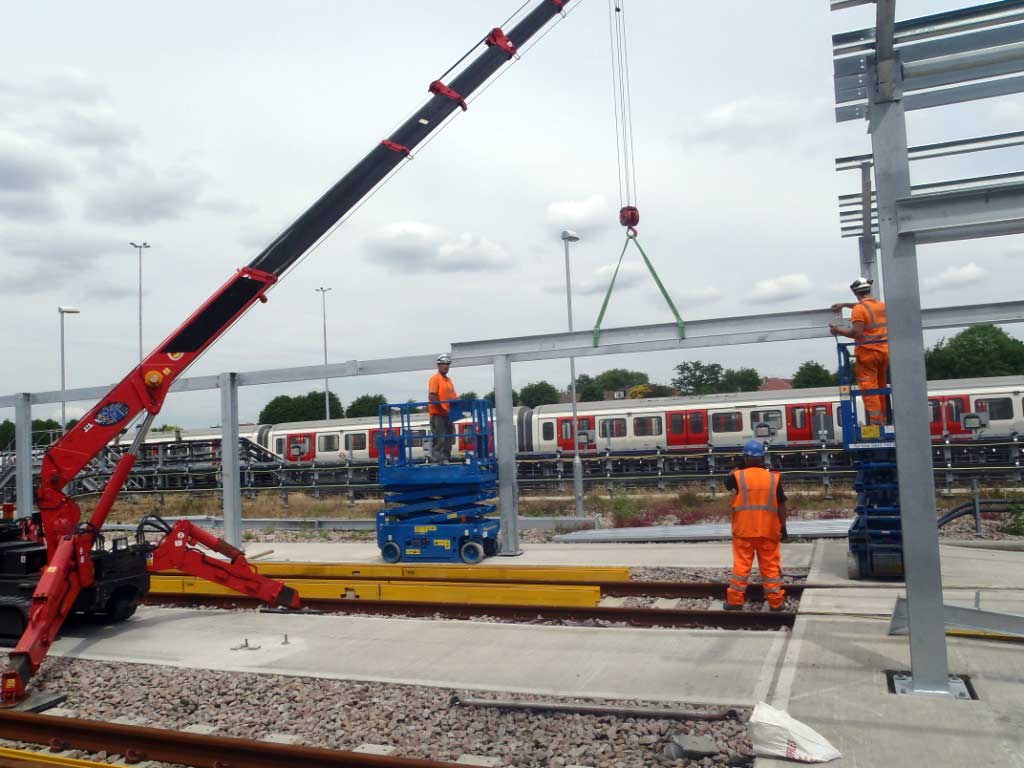

URW-376 Mini Spider Crane – Railway Beams
URW-376 Mini Spider Crane – Railway Beams
Spider Crane Hire – UNIC URW-376
UNIC URW376 Spider Crane Spec Sheet
URW-376 Mini Spider Crane – Working Radius

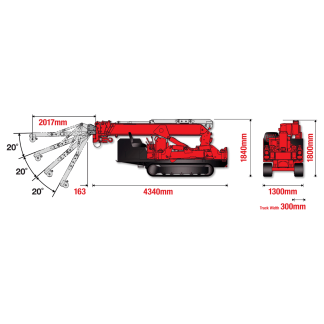

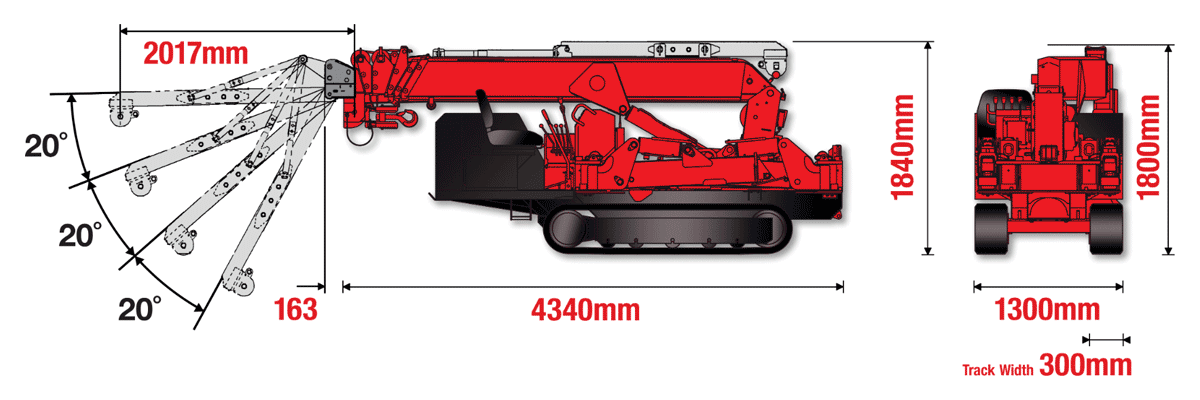

URW-376 Mini Spider Crane – Elevation Flat
URW-376 Mini Spider Crane – URW376CDE Boom
URW-376 Mini Spider Crane – Outrigger Positions
URW-376 Mini Spider Crane – URW376CDE Working Posture of Searcher Hook
URW-376 Mini Spider Crane – URW376CD Working Posture of Extension Jib
URW-376 Mini Spider Crane – URW376CDE Hook Fall
Full Screen
For Hire For Sale Buy Online X

The UNIC URW-376 is a mid-capacity mini spider crane with excellent safety features, and is ideal for a wide range of lifting applications such as moving machinery, building restorations, erecting steel and more.

Price on Application

Hire With or Without Operator

Description

This UNIC URW-376 mini crane is suitable for a wide variety of applications, from machinery removal and maintenance, restoration projects and for use in the glazing industry with our range of glass vacuum lifters.

It features a six section hydraulic boom that provides a working radius of up to 14.45m, with a 360 degree continuous slew (clockwise and anticlockwise) for the flexibility to lift in both directions.

Experienced operators will find the URW-376 is quick to set up, or we can provider certified operators to help with the lift. As well as the ability to be controlled from the on-board operator’s seat, this crane can also be operated via remote control allowing the operator to work in close proximity to the load whilst remaining safely outside of the load’s working radius.

Capacity 2.9t x 2.5m
Max working height 14.9m (16.63m with fly jib,17.33m with fixed hook)
Max working radius 14.45m
Boom length 3.63 – 14.61m
Weight 3850kg (4000kg with electric option)
Power source Diesel, electric dual power option

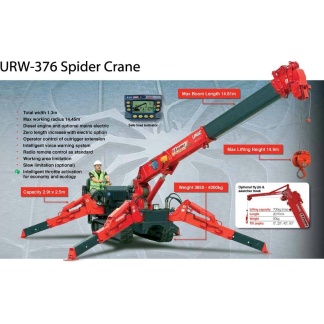

Key Features

  • Capacity 2.9t x 2.5m
  • Total width 1.3m
  • Max working radius 14.45m
  • Max lifting height 14.9m (16.63m with fly jib, 17.33m with searcher hook)
  • Max boom length 14.61m
  • Diesel powered and optional mains electric
  • Zero length increase with electric option
  • Operator control of outrigger extension
  • Radio remote control
  • Working area limitation
  • Intelligent throttle activation for economy and ecology
  • Optional low marking tracks
  • Optional radio remote control with feedback display
  • Maximum wind speed for safe use is 36km/h, 22mph or 10m/s

Technical Specs

  • Capacity: 2.9t x 2.5m
  • Max working radius: 14.45m
  • Max lifting height: 14.9m approx (16.63m with fly jib, 17.33m with searcher hook)
  • Rope length max: 18.29m (4 fall), 37.89m (2 fall), 77.07m (1 fall)
  • Dimensions folded: 4340mm (l) x 1300mm (w) x 1800mm (h)
  • Weight unladen: 3850kg (4000kg with electric option)
  • Hook speed: approx 17m/min (with 4 layers and 4 falls)
  • Telescopic system:
    • 6 section hydraulically telescoping boom, hexagonal box construction
    • boom length: 3.63 – 14.61m
    • telescoping speed: 10.98m/23 seconds
  • Derricking angle/speed: 0 – 80˚/10 seconds approx
  • Slewing angle/speed: 360˚ (continuous) 2.5 rpm approx

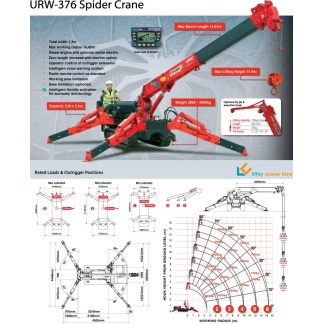

UNIC URW376 Spider Crane Spec Sheet

<h4>UNIC URW376 Spider Crane Spec Sheet</h4>

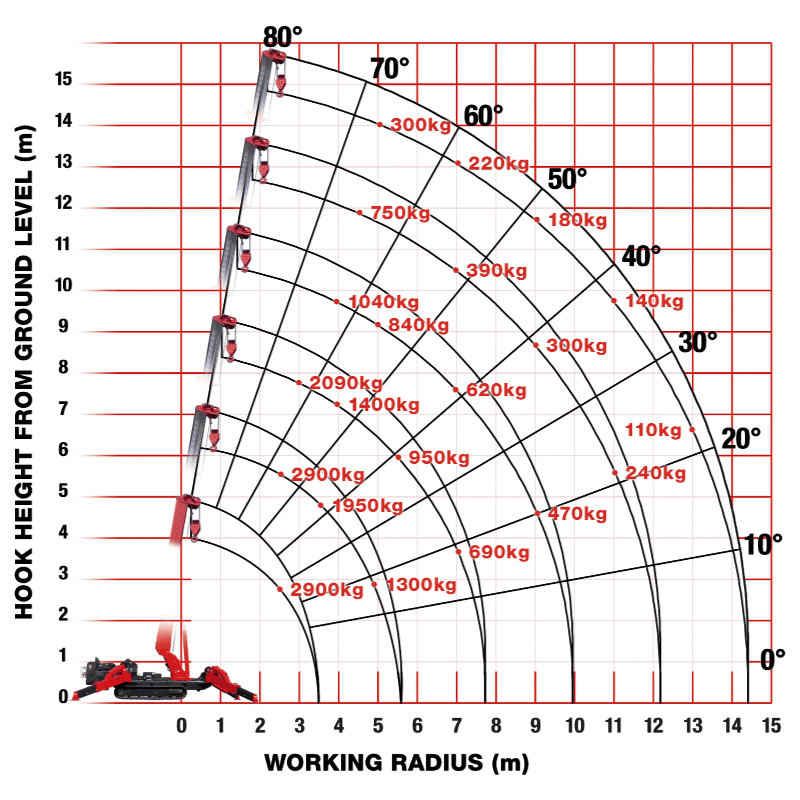

URW-376 Mini Spider Crane - Working Radius

<h4>URW-376 Mini Spider Crane - Working Radius</h4>

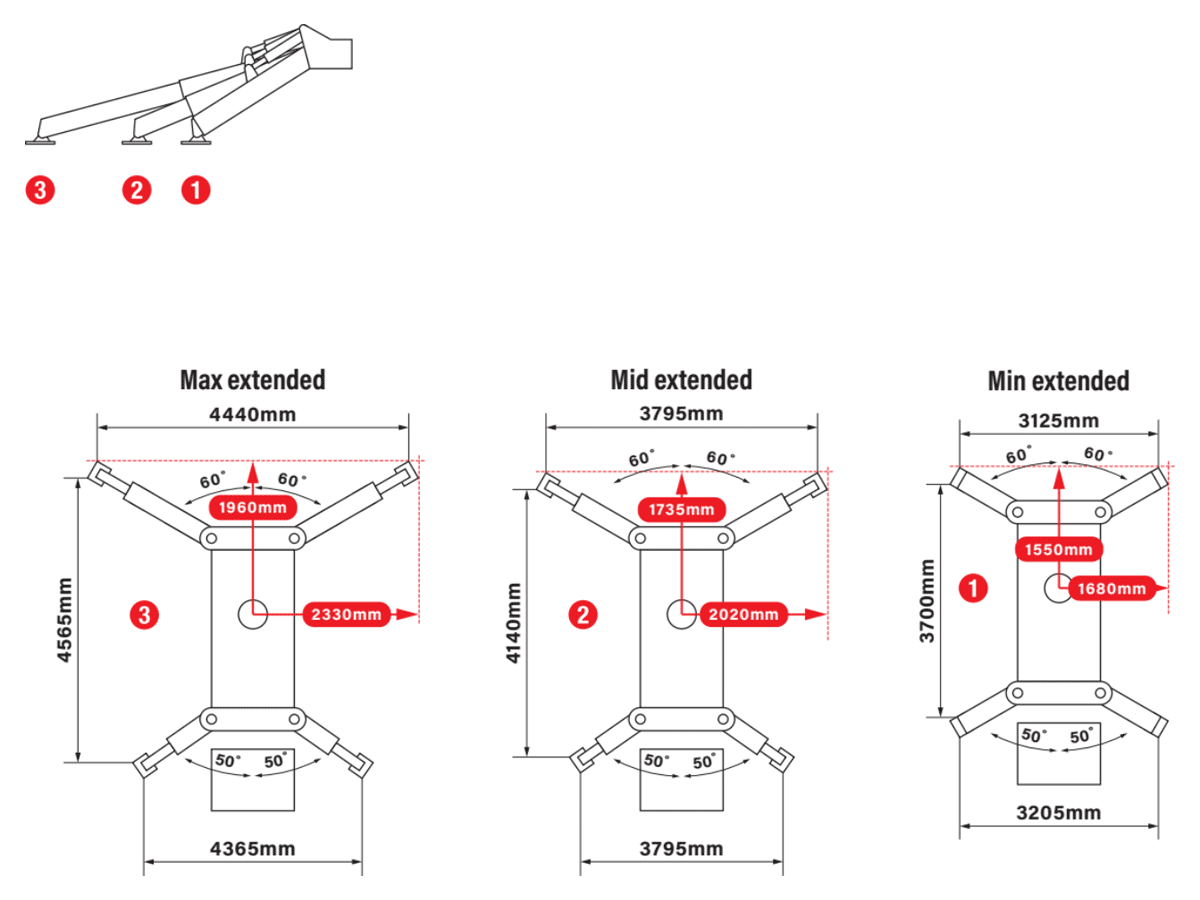

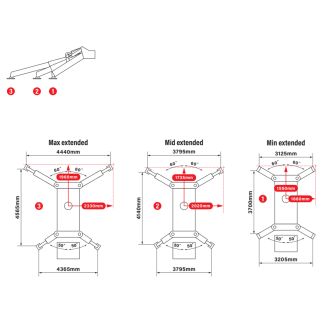

URW-376 Mini Spider Crane - Outrigger Positions

<h4>URW-376 Mini Spider Crane - Outrigger Positions</h4>

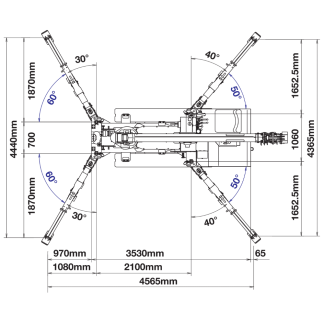

URW-376 Mini Spider Crane - URW376CDE Boom

<h4>URW-376 Mini Spider Crane - URW376CDE Boom</h4>

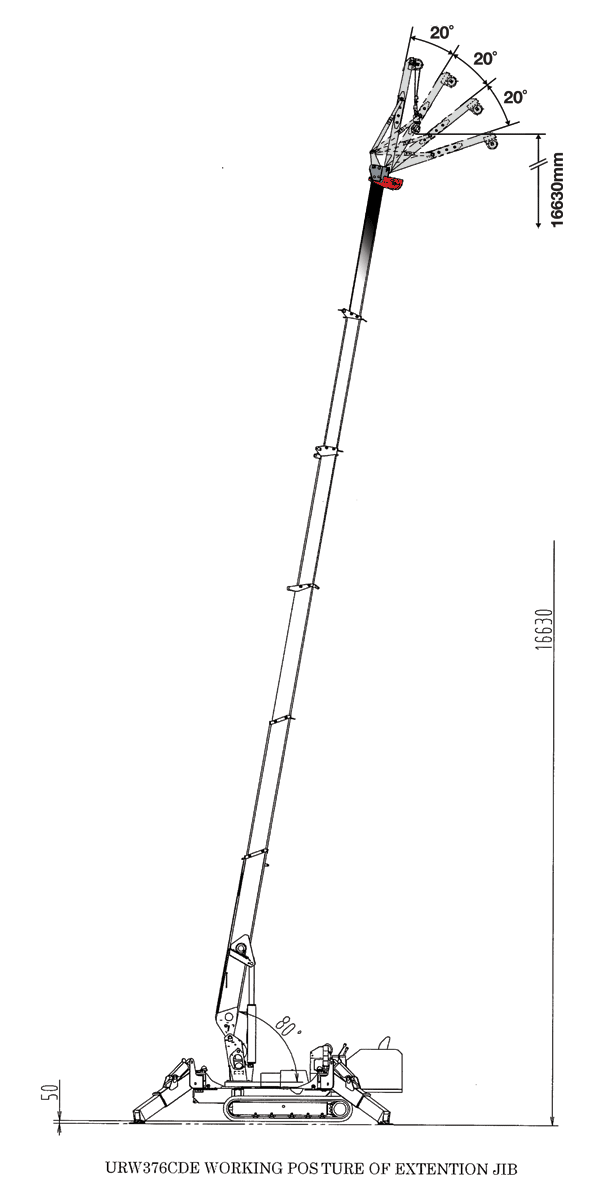

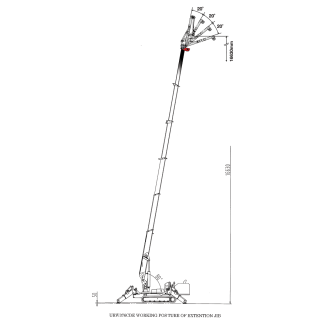

URW-376 Mini Spider Crane - URW376CD Working Posture of Extension Jib

<h4>URW-376 Mini Spider Crane - URW376CD Working Posture of Extension Jib</h4>

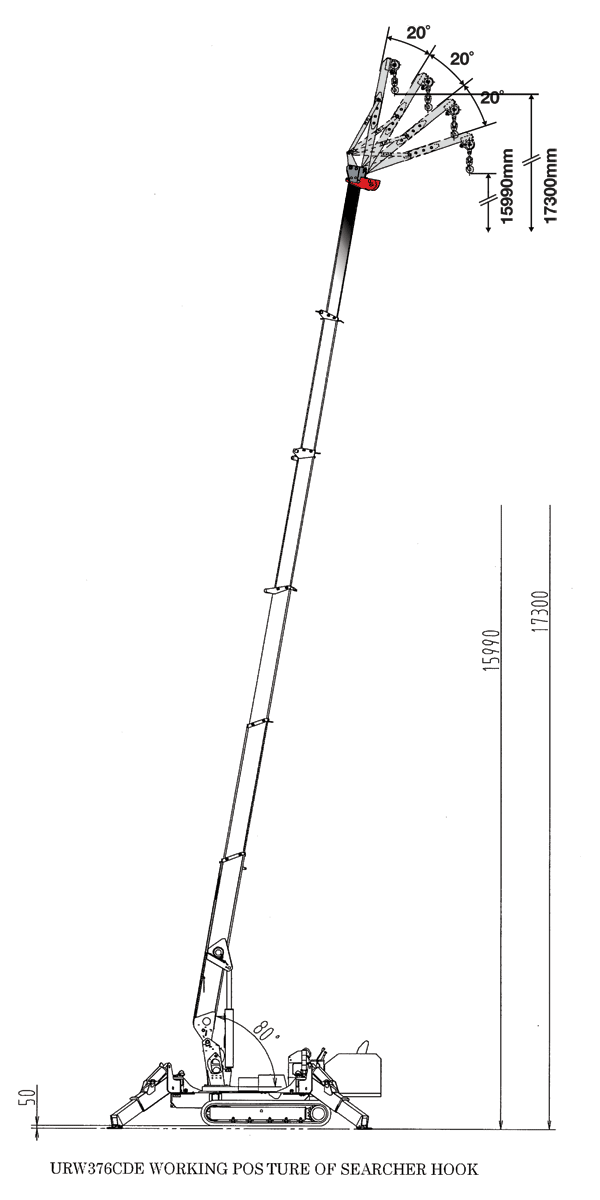

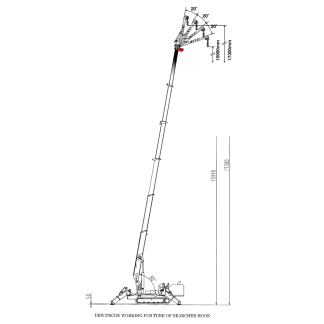

URW-376 Mini Spider Crane - URW376CDE Working Posture of Searcher Hook

<h4>URW-376 Mini Spider Crane - URW376CDE Working Posture of Searcher Hook</h4>

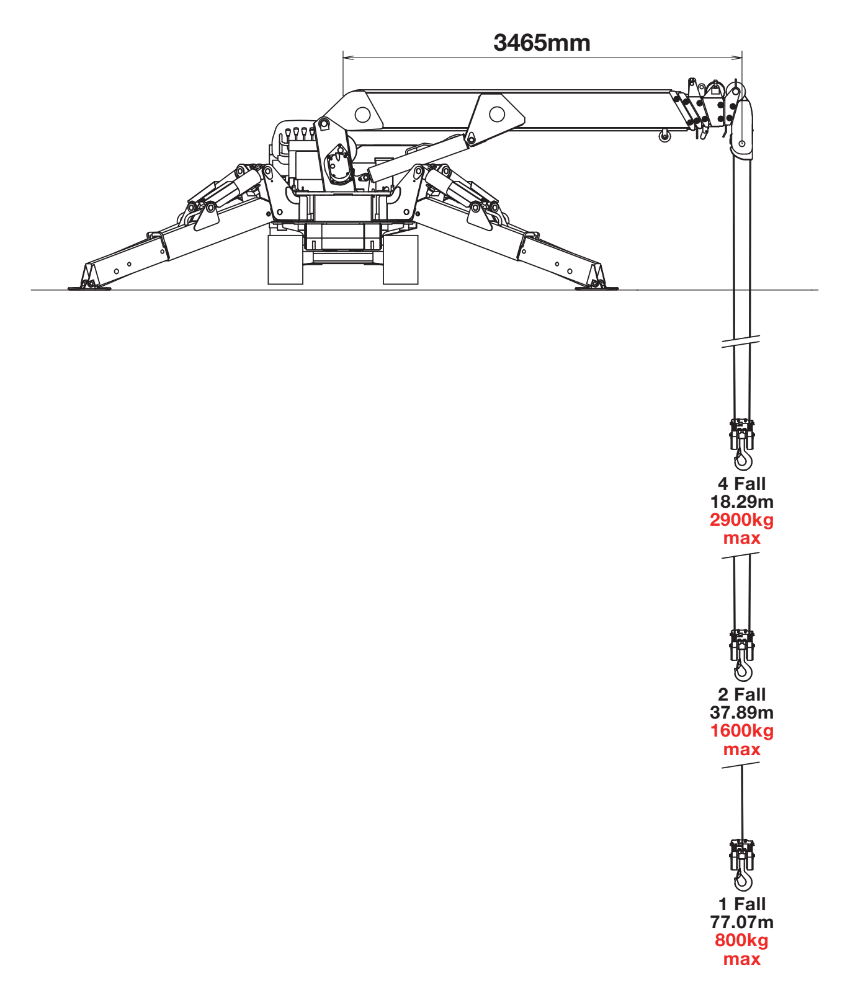

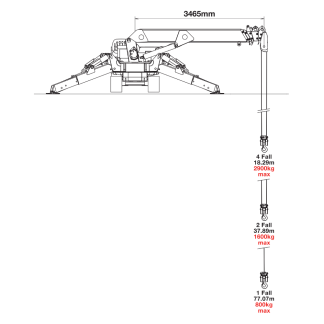

URW-376 Mini Spider Crane - URW376CDE Hook Fall
