Description

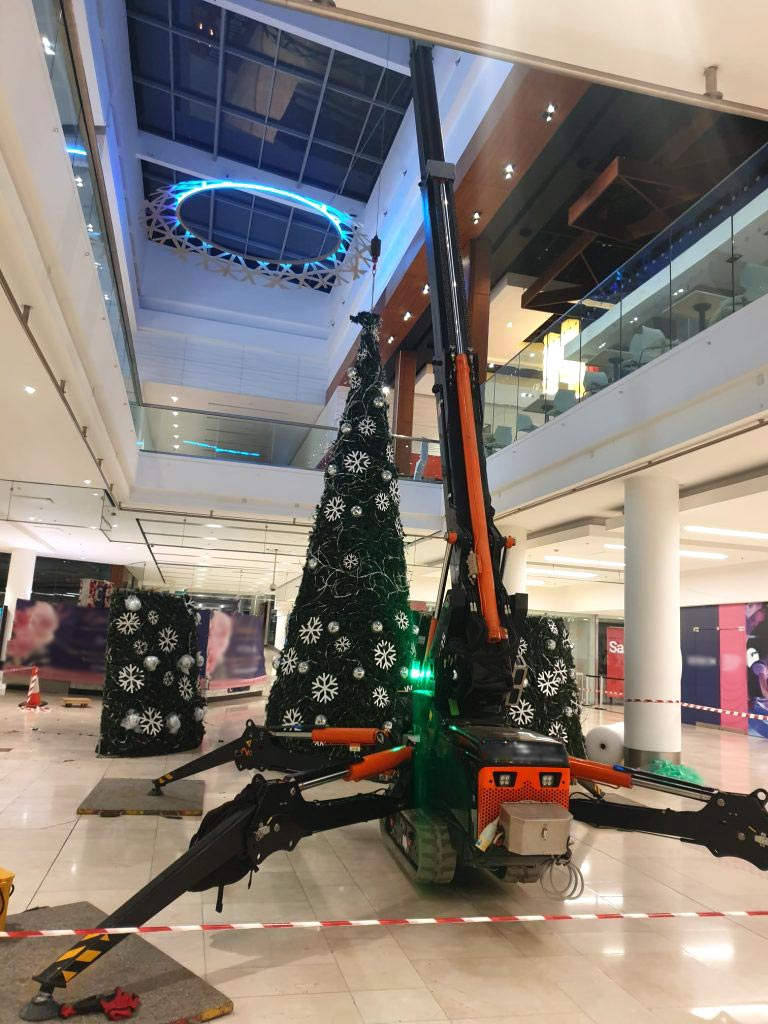

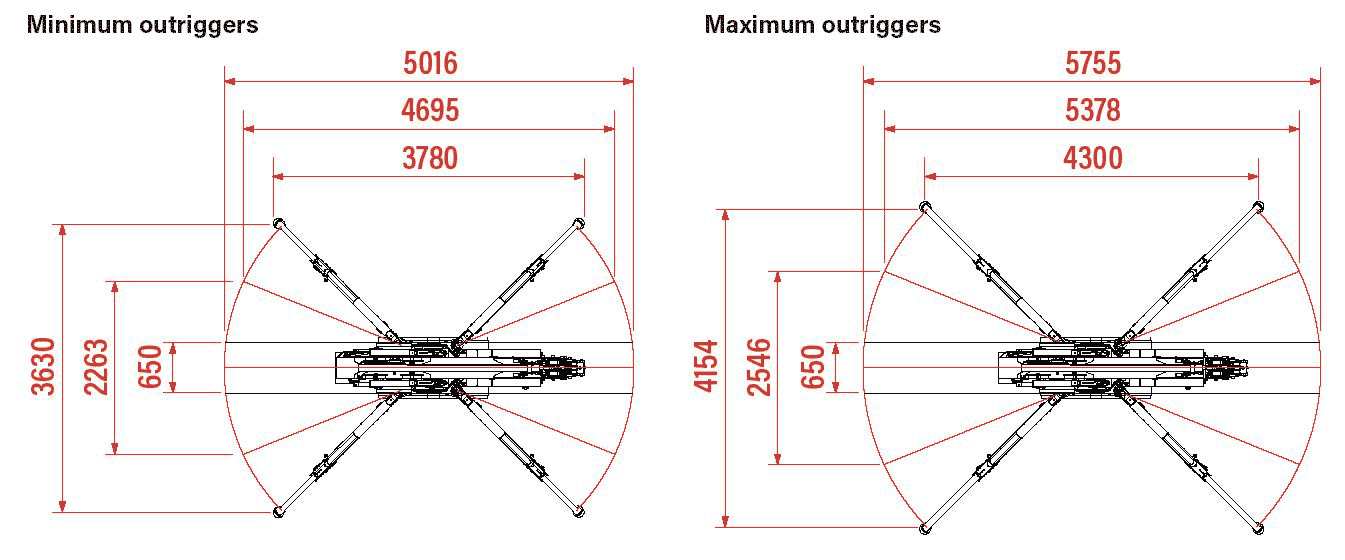

The TMC 25 Articulated Crane is perfectly suited for both indoor and outdoor applications in tight, hard-to-reach spaces, thanks to its compact working footprint. With a 780mm-wide chassis, it easily navigates through doorways and around obstacles on busy construction sites.
Equipped with all-terrain tracks, this mini crane excels on uneven surfaces, making it ideal for rooftop operations and tasks between floors.
| Capacity | 2.5t x 1.5m |
| Max hook height | 10.4m (15.65m with jib) |
| Max working radius | 8.43m (12.85m with jib) |
| Slewing angle/speed | 360° (continuous) 1.5 min rpm |
| Power source | Engine: diesel/electric 220v 16a / 110v 32a |
