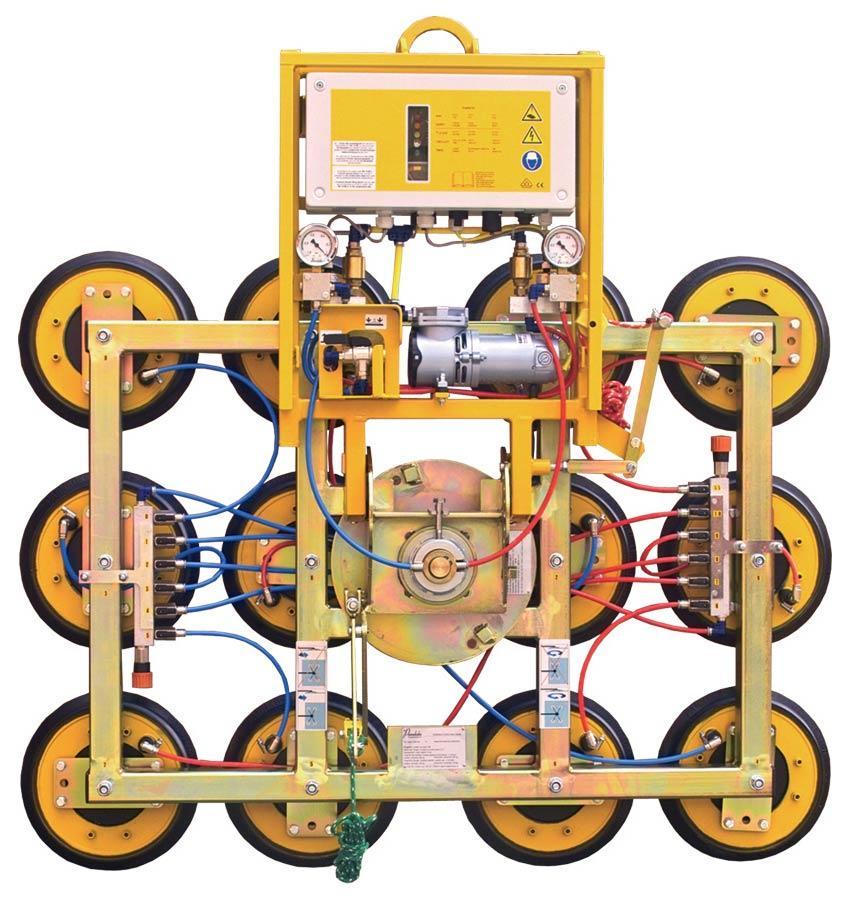

Description
The battery-powered Kombi 7211-DS2 allows you to move loads of up to 600 kg. The load can be turned through +/- 90 and or pivoted through 90 degrees. Turning and tilting are carried out manually. There are locking points every 15 degrees throughout the tilting range.
The battery-powered Kombi 7211-DS2 has a 2-circuit vacuum system and was developed for construction site use in accordance with the safety standard EN 13155. Use of 2-circuit technology means that the battery-powered Kombi 7211-DS2 has two independent vacuum circuits.
Each vacuum circuit is designed so that it can support twice the nominal load on its own, if one of the systems fails, or if there is a loss of power, you receive a warning.
Each suction cup can be individually locked
The battery-powered vacuum pump does not require a power supply, so that the battery-powered Kombi 7211-DS2 can be used anywhere.
| Capacity | 600kgs |
| Suspension | Crane eye at carrying frame |
| Depth | 1000mm |
| Rotation | -90°/0°/+90° |
| Tilt | 0° to 90° locking every 15° |
| Vacuum system | Dual circuit |
