Description

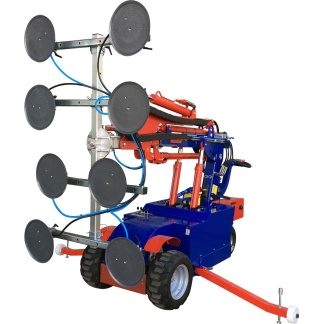

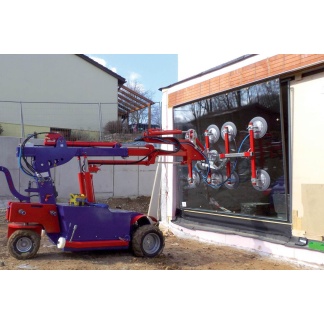

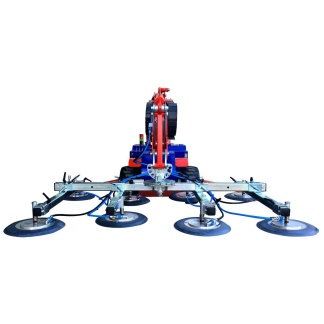

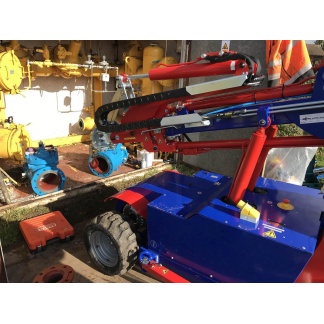

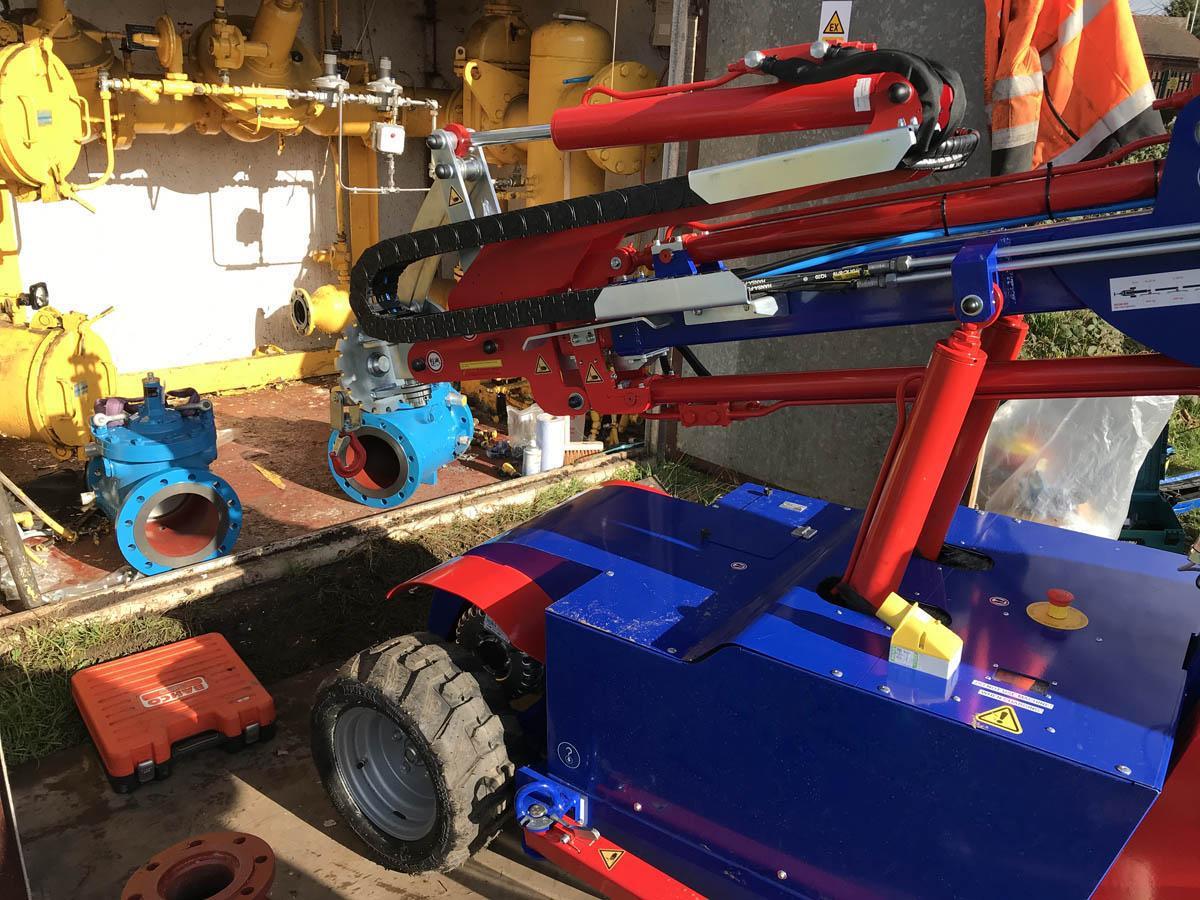

The OSCAR 800 Offroad is a glazing robot with a capacity to lift up to 800kg, designed to handle glass plastic boards, ceramic plates and steel plates for easy handling and installation. Fitted with all terrain tyres, the OSCAR 800 Offroad makes it easier to work in areas with restricted access and poor ground conditions.

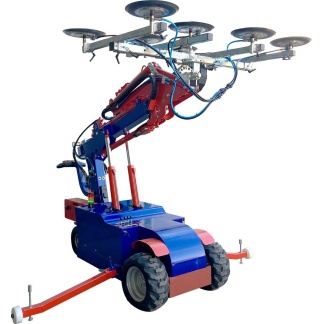

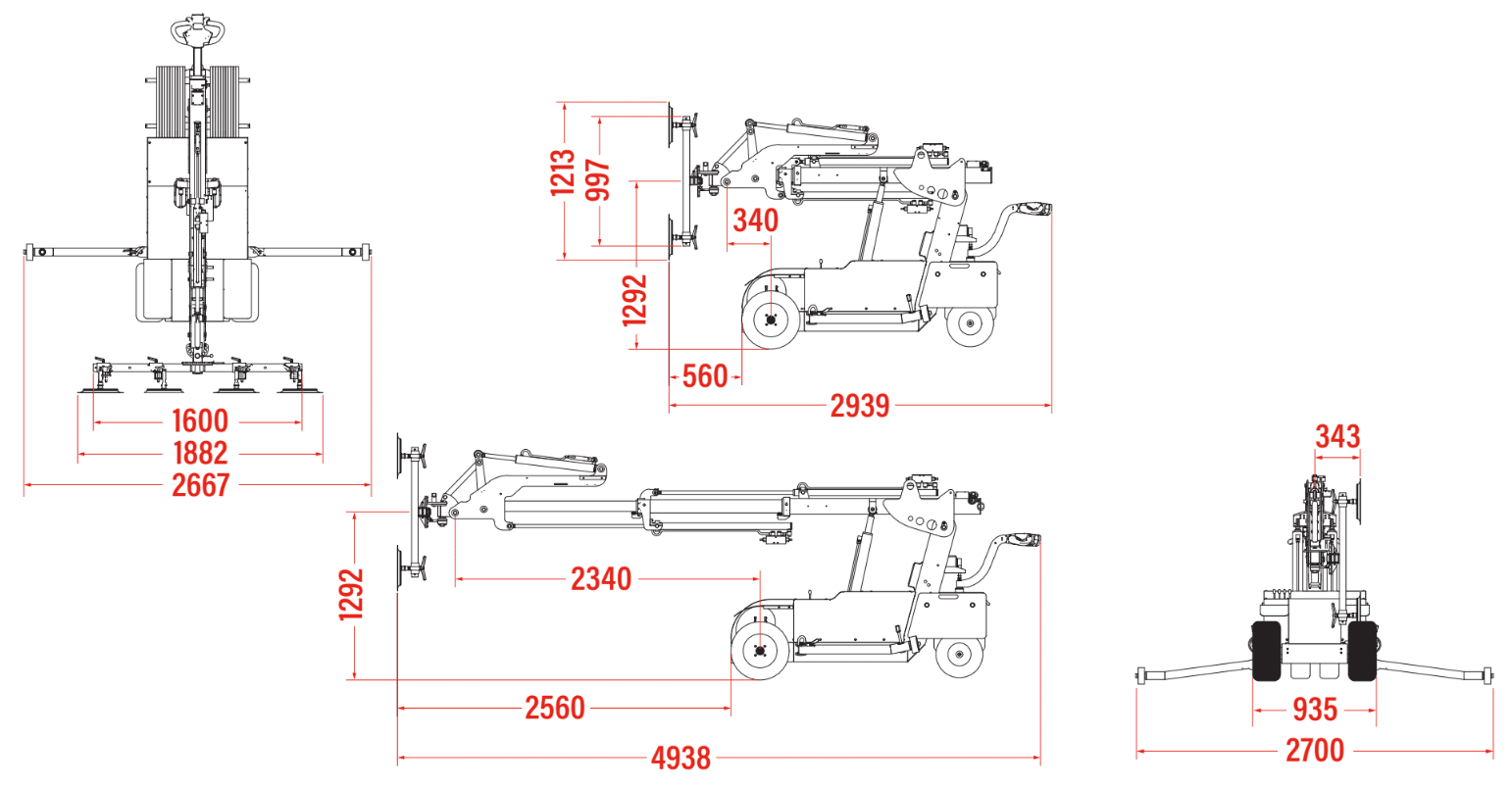

With a hydraulically powered robotic arm that can extend up to 2500mm, the OSCAR 800 Offroad can install materials with precision due to its movable head that has the ability to rotate 135° left and right; tilt 90° up and down; and slew 90° left and right.
For extra stability when transporting and lifting loads, the OSCAR 800 Offroad comes complete with wheeled stabilisers. A radio remote control, allows operators to decide how close they want to be to the load – closer during installation or further away to remain at a safer distance as required.

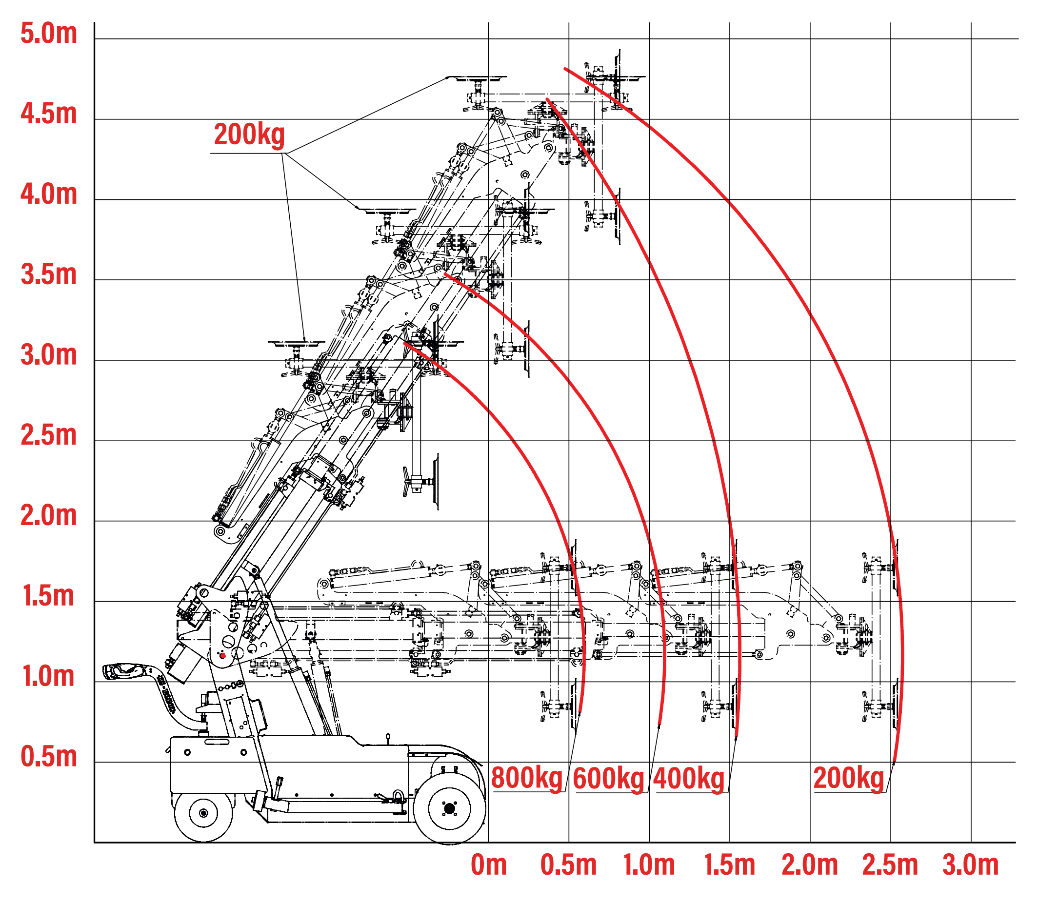

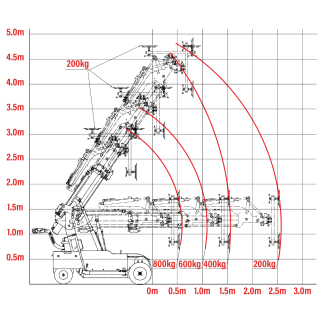

| Lifting capacity | 800kg |
| Weight | 1340kg with (counterweights) 972kg (without counterweights) |
| Head Tilt | 90° powered up & down |
| Head rotation | 180° manual lockable left & right |
| Head Slew | 90° manual left & right |
| Vacuum system | Dual circuit |
| Battery powered | 24V with 110V 16A built in charger |
