Description

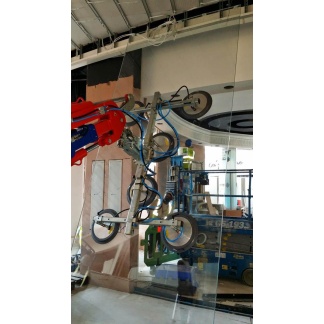

The highest capacity glazing robot in our range, the Oscar 1000 offers the ultimate combination of lifting power and class-beating dimensions for effortless installation of glass, facades, window and door elements weighing up to 1000kg.
Controlled with a radio remote, the Oscar 1000 has a telescopic lifting arm and a 360° rotating head with a hydraulically powered 180° tilt function for precision handling of sheet materials. With rear wheel drive and a unique lateral side shift function, the Oscar can slightly adjust its position on the spot to make sure glass is accurately placed for easy installation.
At just 1270mm wide, the Oscar 1000 is ideal for re-glazing work as it can be operated in tight working areas and can carry materials through narrow access points by swinging loads into an overhead position with its articulated joint.
The Oscar 1000 Plus retains all the features of the standard Oscar 1000 and but with hydraulically powered head slewing 80° left and right and 360° rotation.
| Lifting capacity | 1000kg |
| Weight | 1920kg with (counterweights) 1425kg (without counterweights) |
| Head Tilt | 90° powered up & down |
| Head rotation | 180° manual lockable left & right |
| Head Slew | 90° manual left & right |
| Vacuum system | Dual circuit |
| Battery powered | 24V with 110V 16A built in charger |
