Description

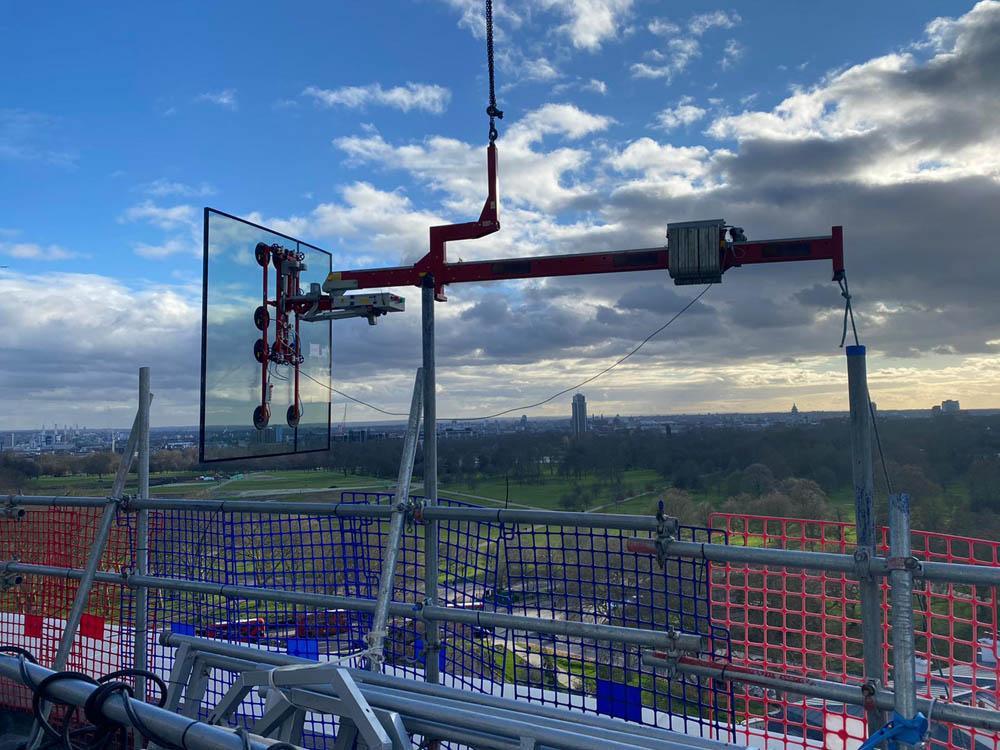

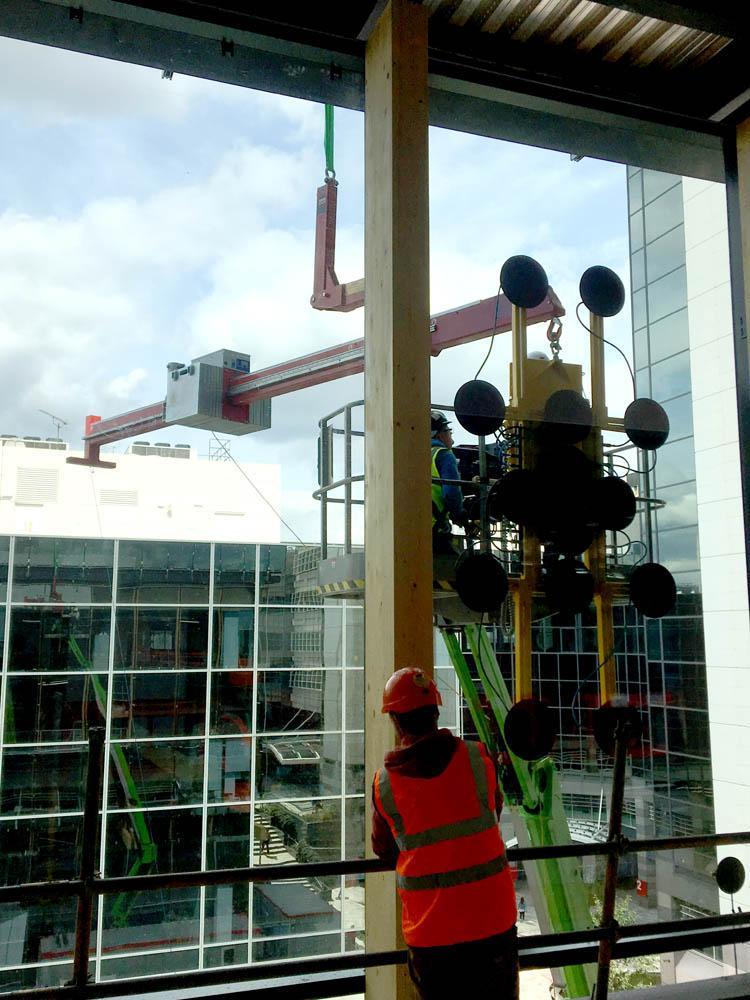

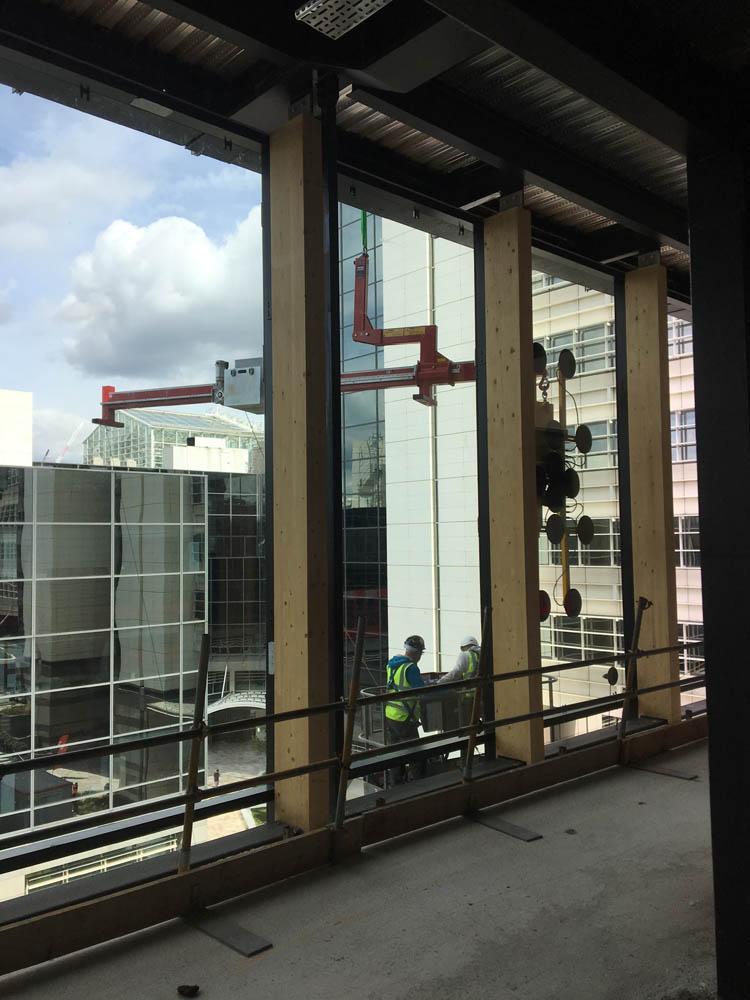

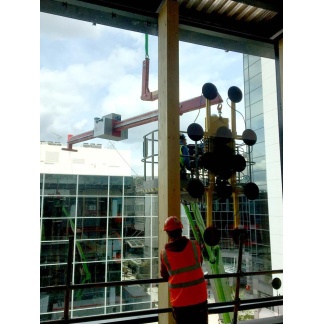

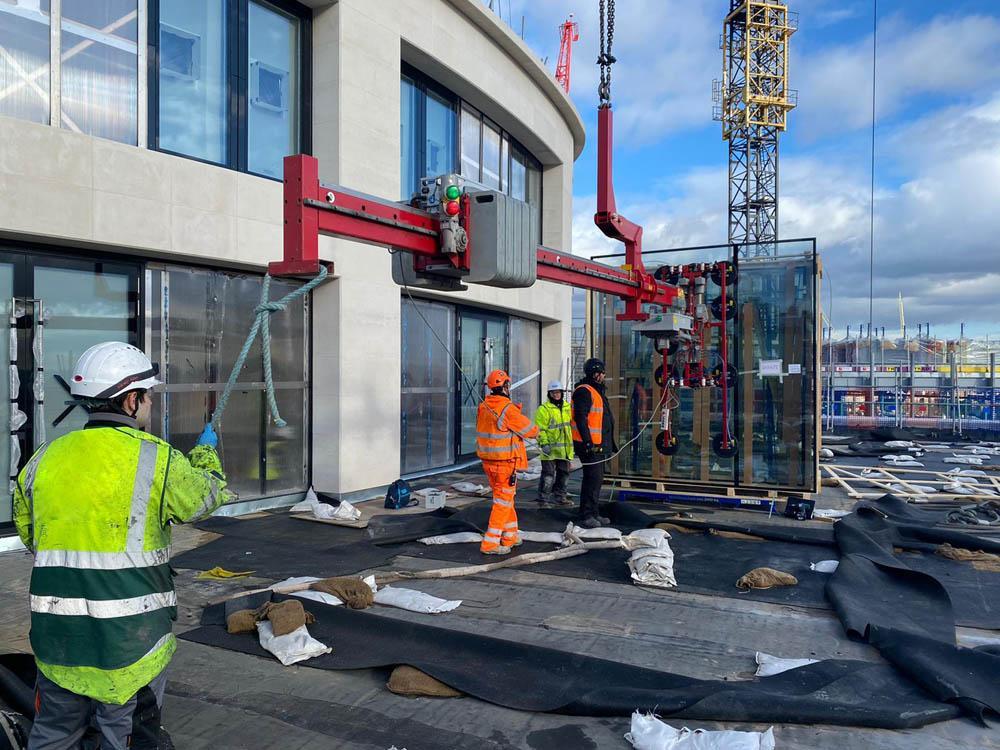

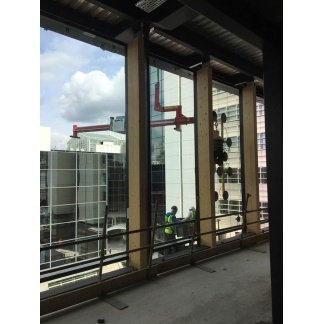

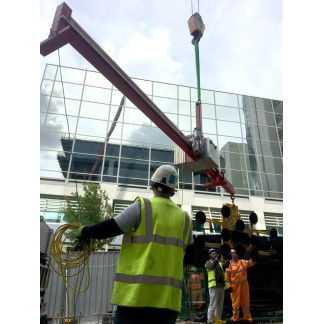

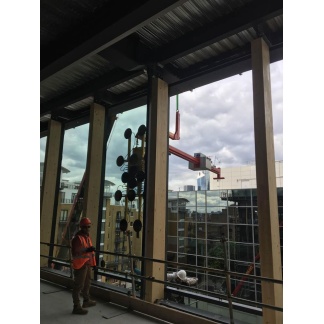

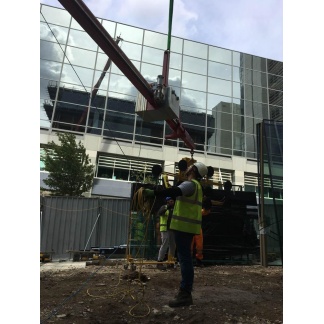

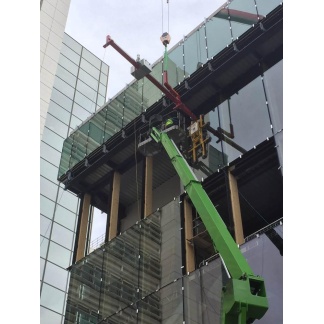

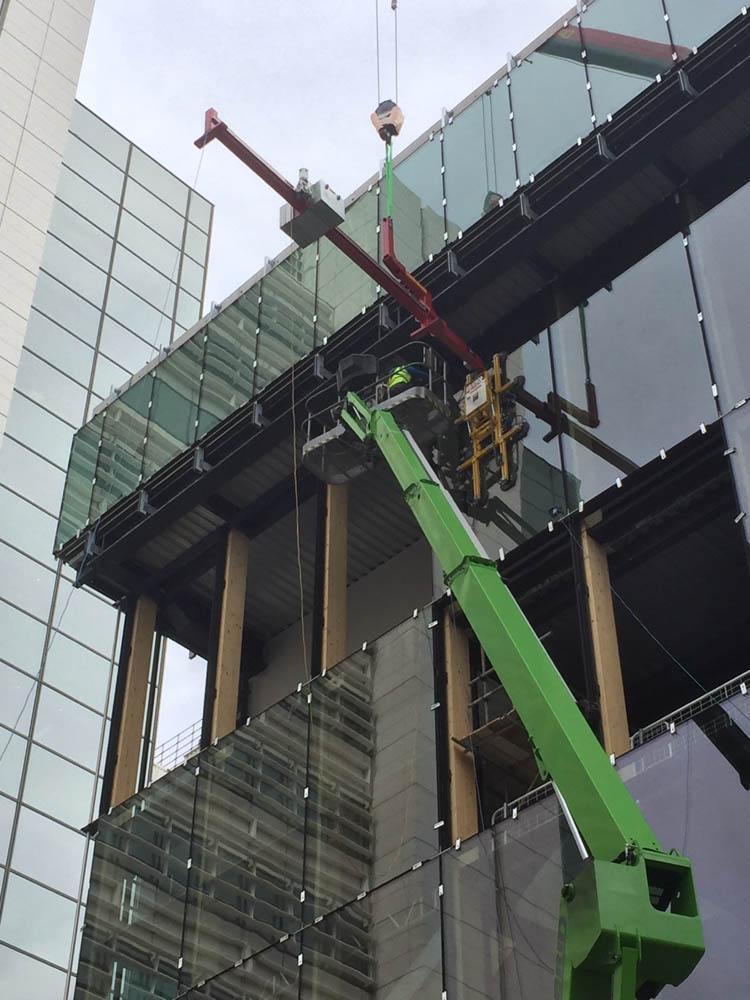

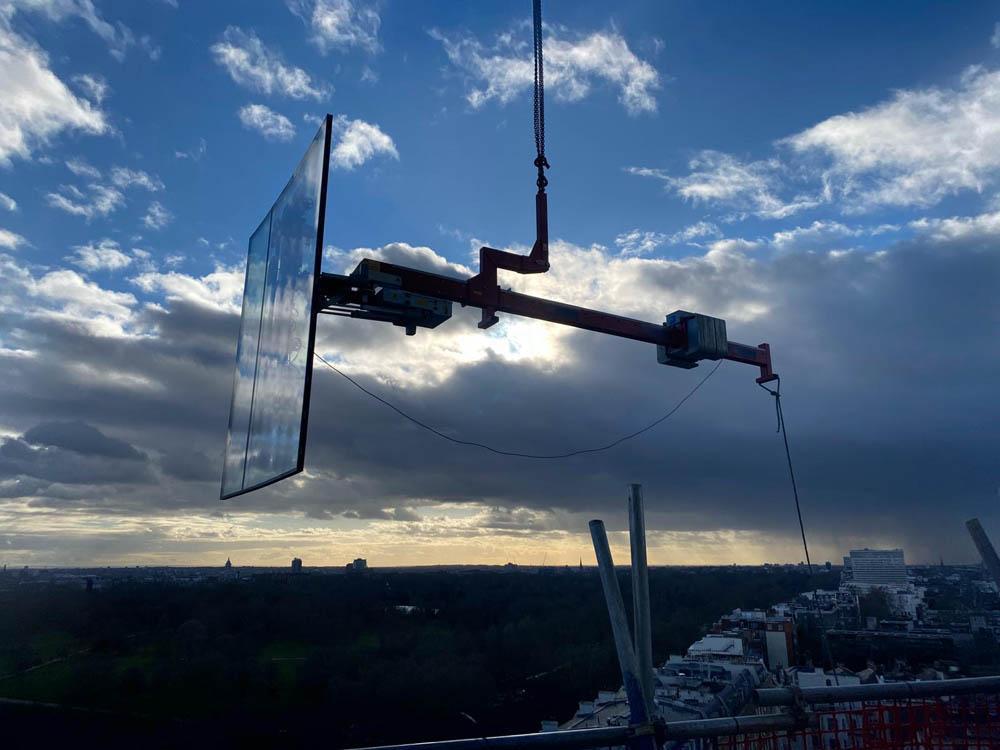

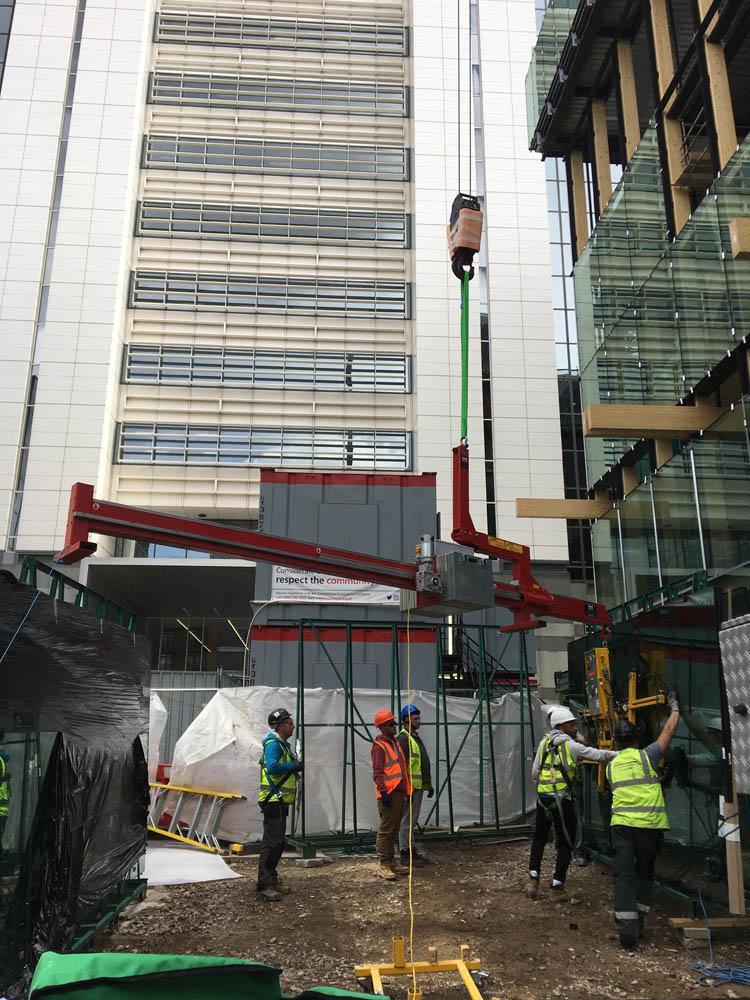

The Libro 2500 is our newest overhang beam boasting a maximum capacity of 2500kg and is able to install glass, curtain walling and cladding below overhangs of up to 3000mm deep.

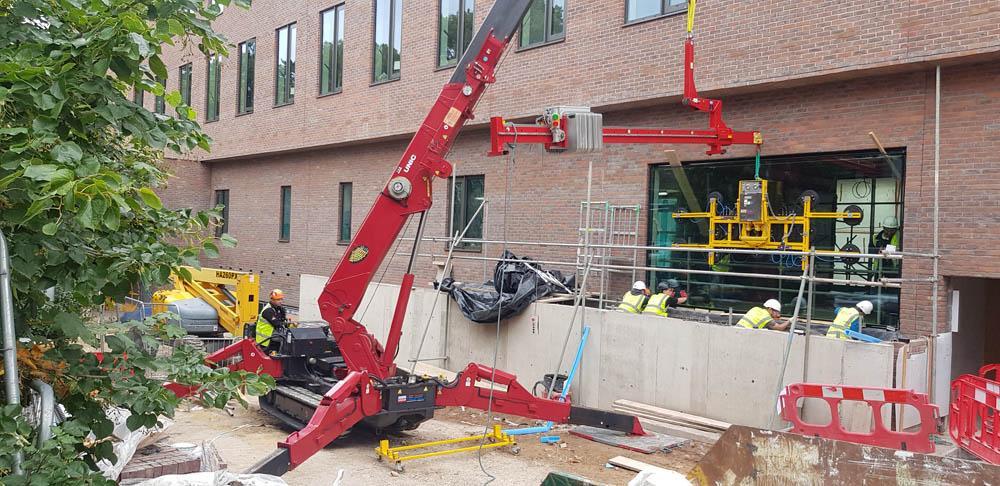

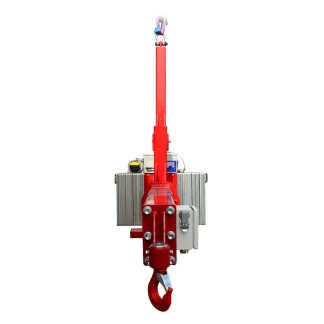

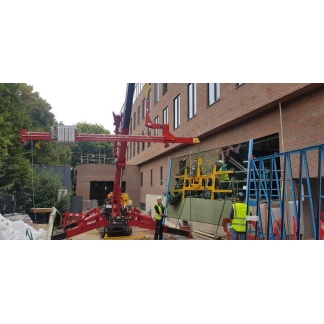

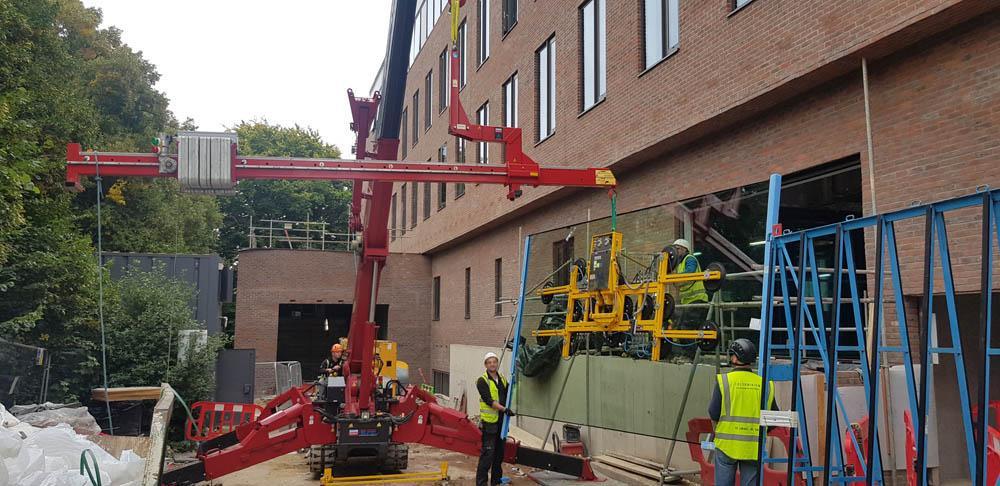

Featuring a hook at the end of its lifting arm, the Libro 2500 counterweight balancer can be used with a below-the-hook vacuum lifter, which are also offered for hire or sale. This high capacity overhang beam can be attached to tower cranes or mobile cranes and is suitable for installation projects at height.
The Libro 2500 is fitted with a rechargeable battery to power the adjustable 30 counterweight rack and pinion saddle. Controlled by cable remote, the counterweight saddle can be moved along the beam to balance the load being lifted.
| Overhang | Capacity |
| 1400mm | 2500kg |
| 1650mm | 2000kg |
| 2000mm | 1500kg |
| 2500mm | 1000kg |
| 3000mm | 650kg |
| Capacity | 2500kg |
| Weight | 1130kg (with 30 counterweights) 380kg (without counterweights) |
| Depth of Overhang | 3000mm |
| Balance Control | Rack and pinion counterweight saddle |
