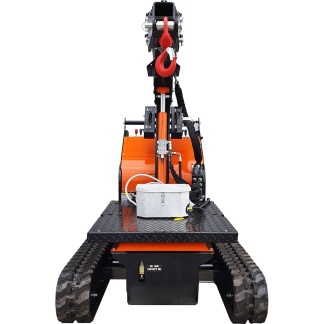

TMC 060 Tracked Pick & Carry Crane – Boom In Tracks Open

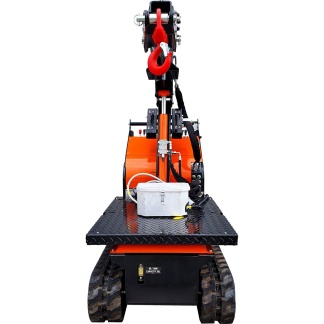

TMC 060 Tracked Pick & Carry Crane – Boom In Tracks Closed

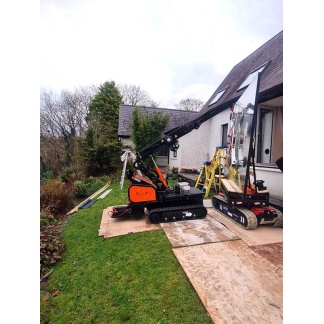

TMC060 Crane and the Multi-loader 3.0 FX in action

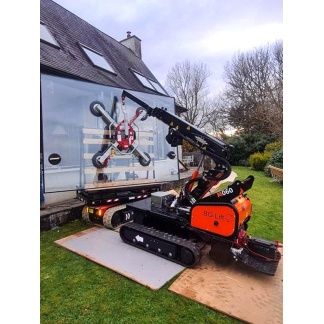

TMC060 Crane and the Multi-loader 3.0 FX in action

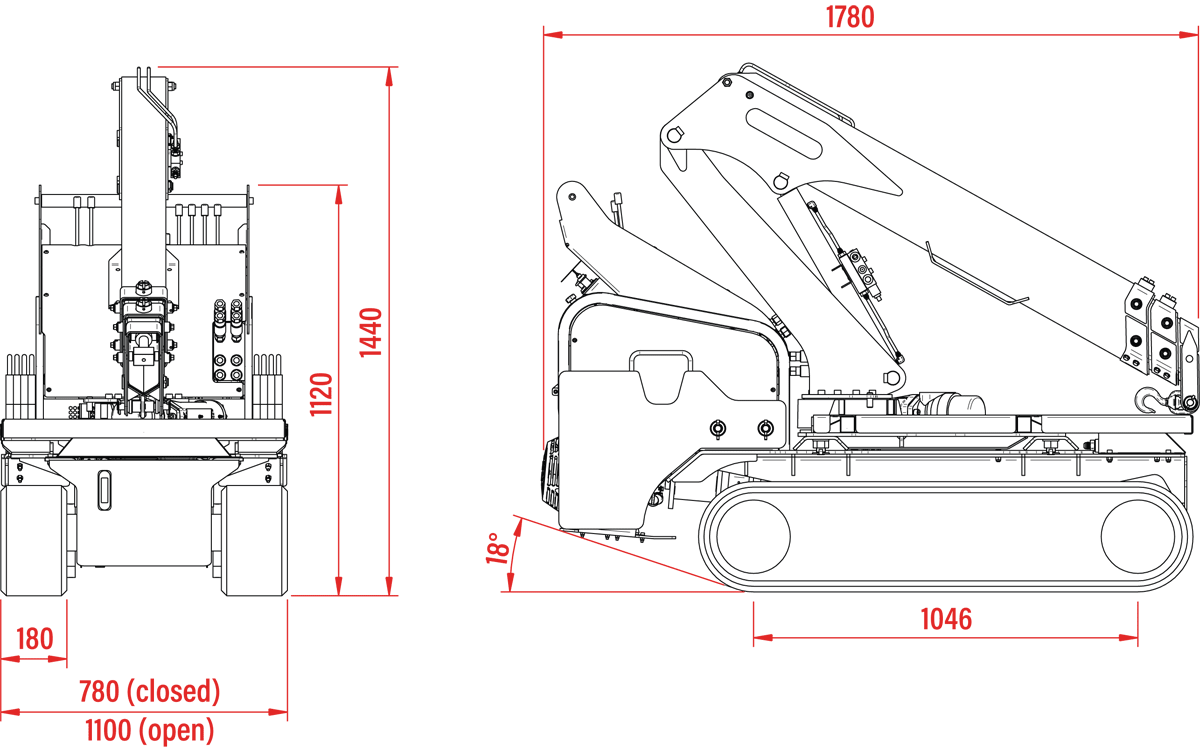

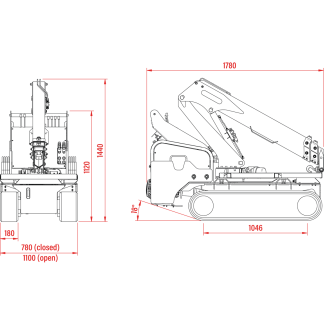

TMC 060 Tracked Pick & Carry Crane Dimensions

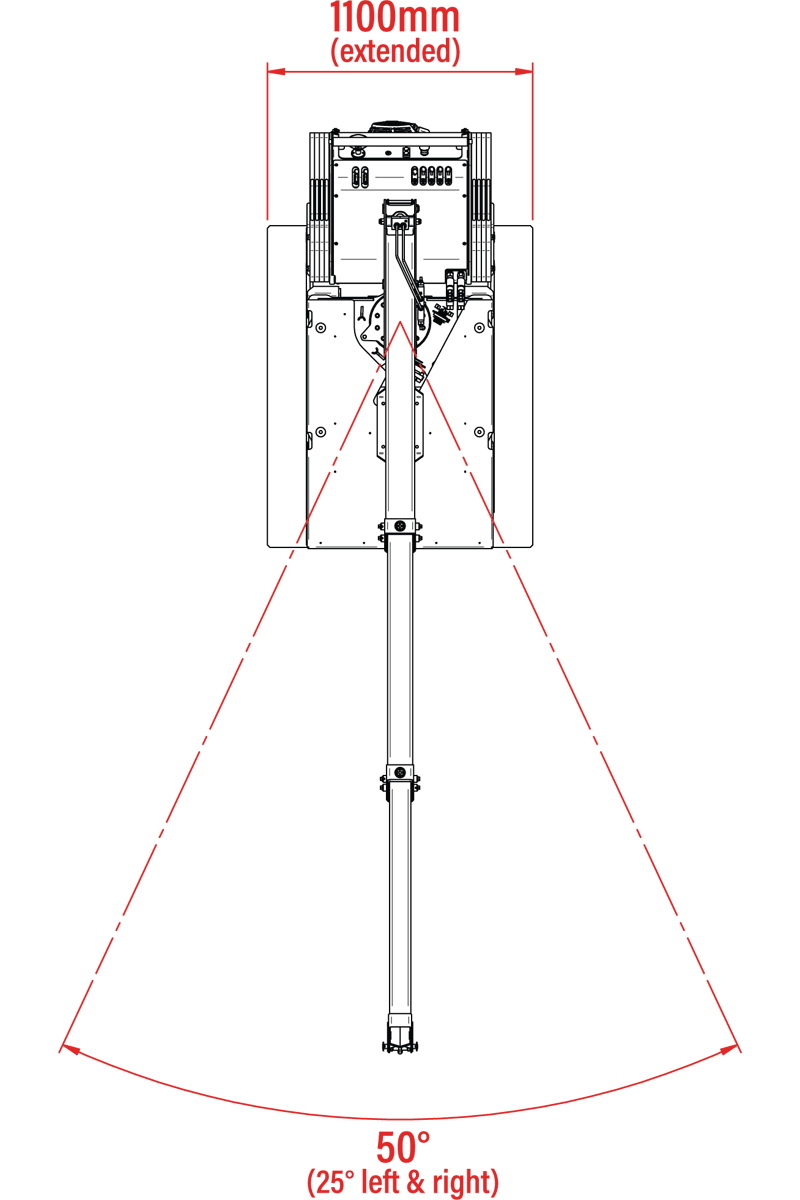

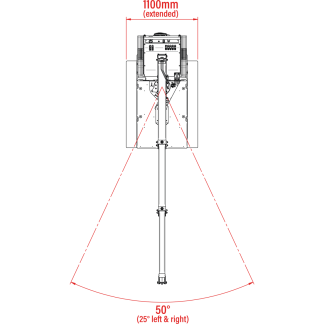

TMC 060 Tracked Pick & Carry Crane Rotation

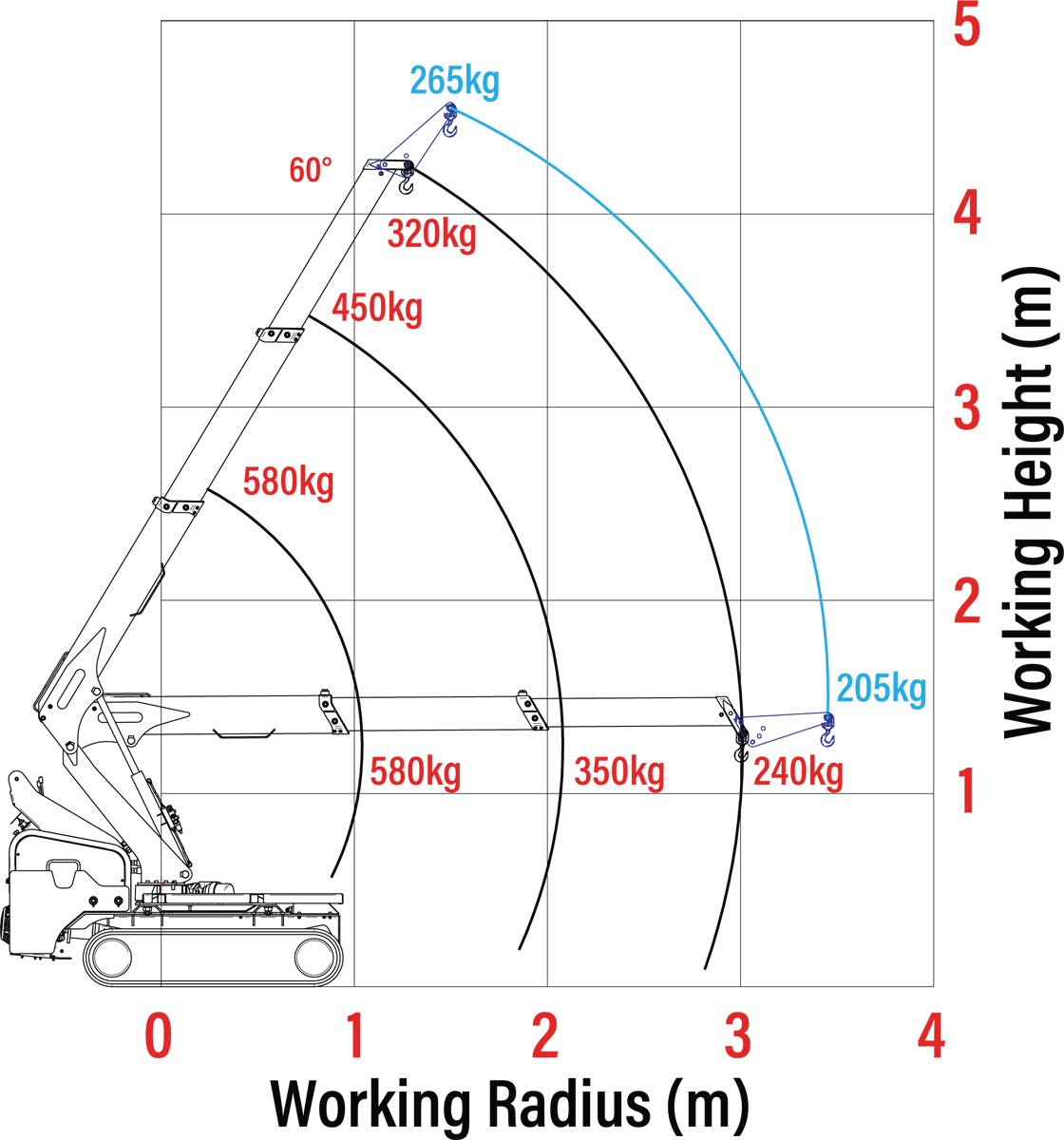

TMC 060 Tracked Pick & Carry Crane Rated Loads S-Hook
TMC 060 Tracked Pick & Carry Crane Rated Loads
Full Screen
For Hire For Sale Buy Online X
Zero Emissions

The TMC 060 Mini Tracked Carrier is an extremely compact and ergonomic tracked pick and carry crane, able to fit in the tightest of spaces yet still boasts a lifting power of 580kg.

Price on Application

Description

Capacity: 580kg

Featuring ₊ /₋ 25⁰ boom rotation and an optional 500kg winch this machine is perfect for teaming up with one of our glass or stone vacuum lifters

The TMC 060 also features either a Honda 11.7hp petrol engine or can be powered by 110 / 220v electric, which is perfect for working in the enclosed areas that this mini machine excels in.

Key Features

  • Capacity: 580kg
  • Hook height: 1.25m
  • Working radius: 3.01m
  • Transport dimensions: 1780mm (l) x 780mm (w) x 1440mm (h)
  • Weight: 720kg, ₊200 kg, 30kg electric motor, 28kg optional winch
  • 25⁰ left & 25⁰ right of centre boom rotation
  • Powered by Honda 11.7hp petrol engine
  • Optional 500kg winch
  • Optional 600kg searcher hook
  • Optional 110/220v electric option

Technical Specs

Download Technical Spec

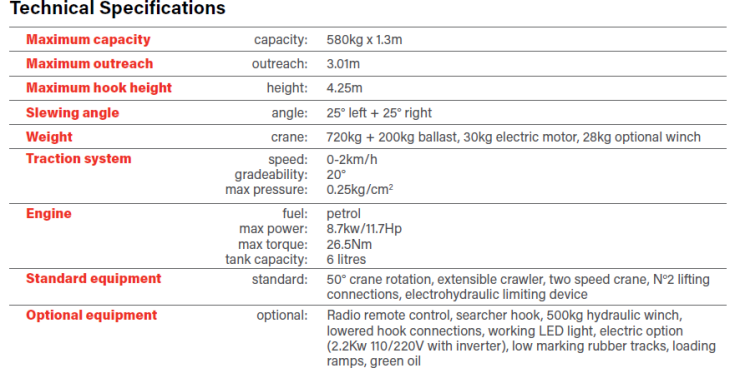

TMC-060 Technical Specifications

<h4>TMC-060 Technical Specifications</h4>

TMC-060 Technical Data

<h4>TMC-060 Technical Data</h4>

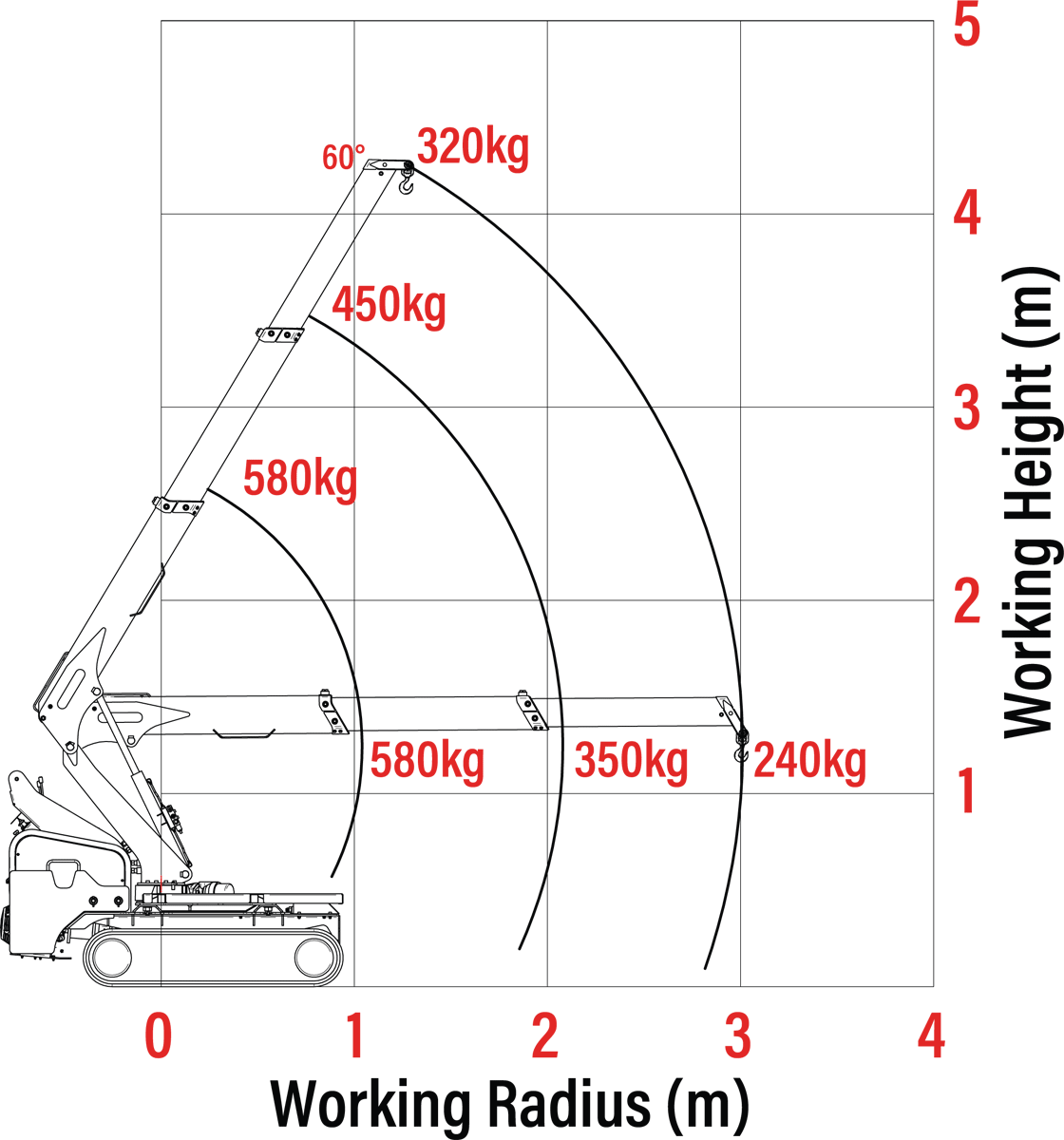

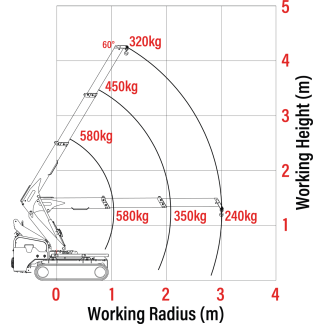

TMC-060 Rated Loads

<h4>TMC-060 Rated Loads</h4>

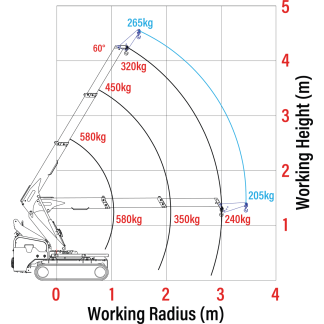

TMC-060 Rated Loads S-Hook

<h4>TMC-060 Rated Loads S-Hook</h4>

TMC-060 Rotation

<h4>TMC-060 Rotation</h4>
