Description
The GL –UMC600 robotic head is an excellent device for lifting and manipulating large format glass weighing up to 600kg. When attached to our compact mini cranes, the GL – UMC600 gives customers the added advantage of the crane’s boom extended reach making it perfect for glazing at height
The highly flexible GL –UMC600 is designed to attach directly to the UNIC crane’s boom and is independently powered with electric actuators that allow precise movement of glass loads. This attachment comes with 360° continuous rotation, 35° head slew left and right, 120° tilt and can be operated via its own radio remote control.

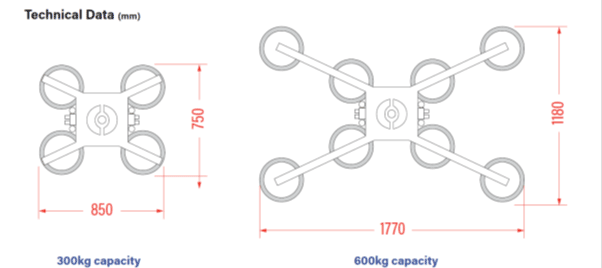

| Capacity | 300 – 600kg (depending on configuration) |
| Weight | 145kg |
| Head Tilt | 120° powered |
| Head rotation | 360° powered continuous |
| Head Slew | 35° powered left & right |
| Vacuum system | Dual circuit |
